EASEMED UROBITUR Urology Electrosurgical Generator Cautery Machine Unit | Bipolar Saline TURP Set
EASEMED UROBITUR Urology Electrosurgical Generator Cautery Machine Unit | Bipolar Saline TURP Set
Couldn't load pickup availability
Product Description

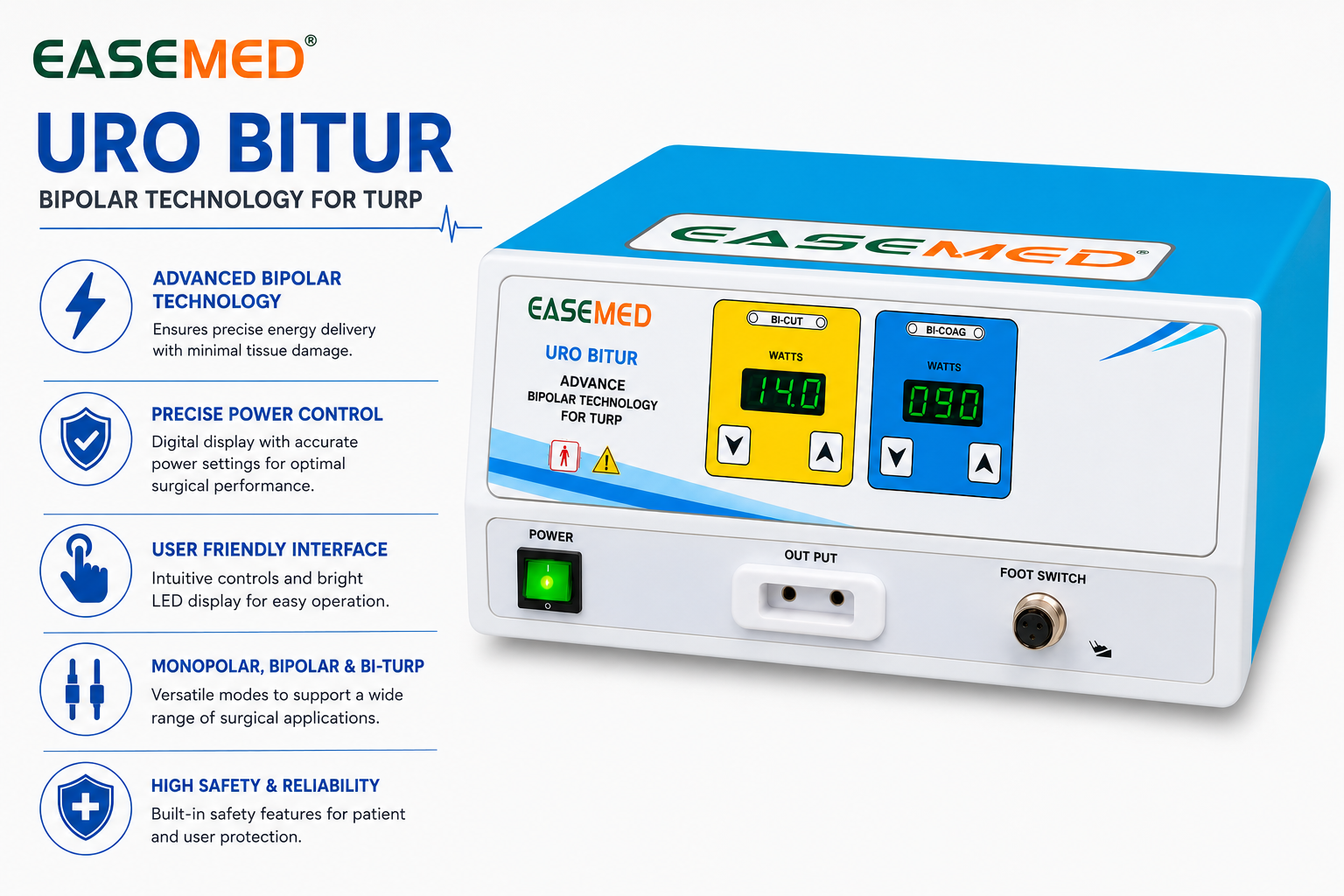

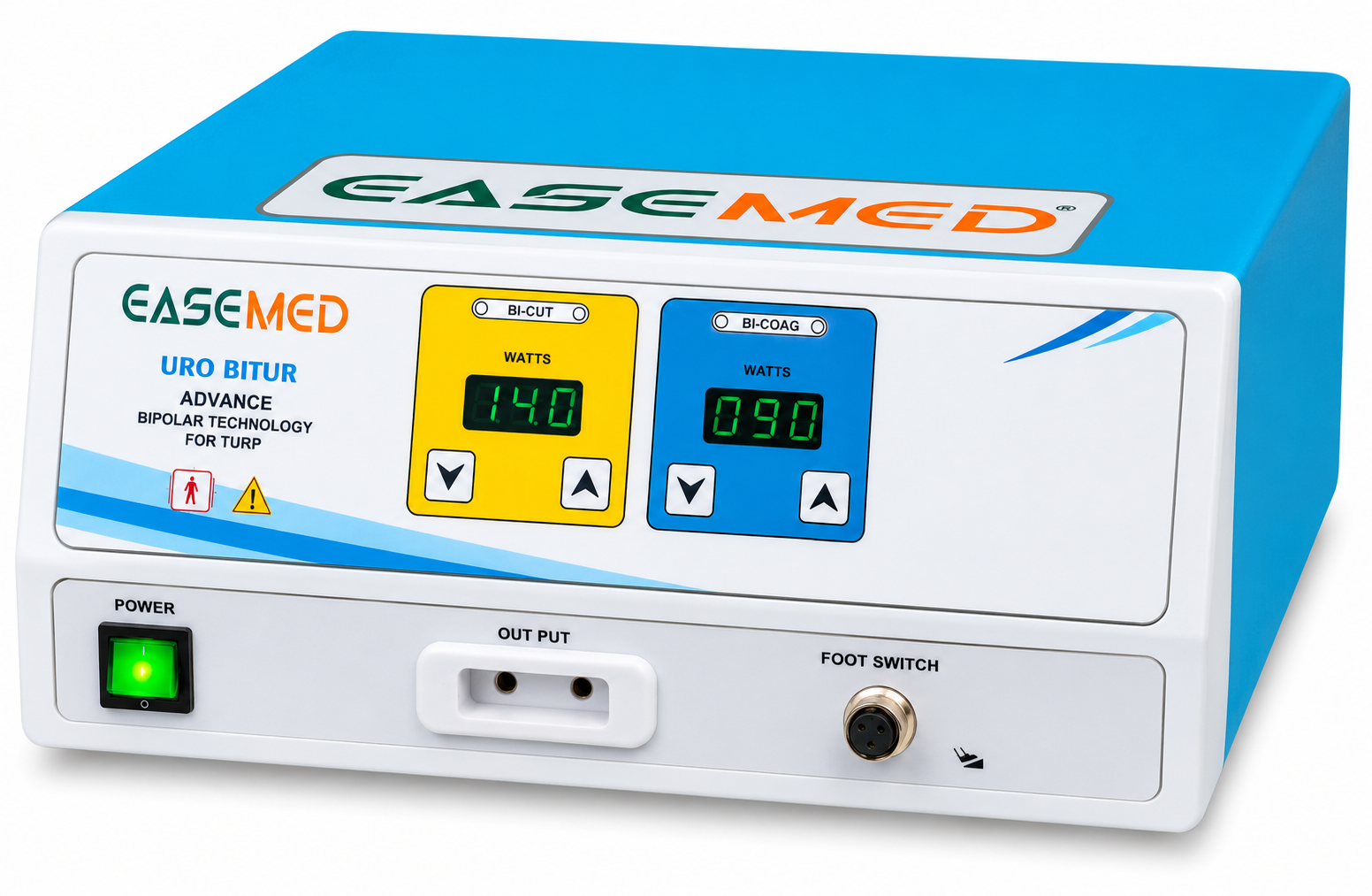

EASEMED UROBITUR Urology Electrosurgical Generator – Bipolar Technology for TURP
The EASEMED UROBITUR Electrosurgical Generator is an advanced urology electrosurgical unit designed specifically for Bipolar TURP and Saline TURP procedures. It combines bipolar, monopolar, coagulation, cutting, and sealing functions in a versatile electrosurgical platform for professional urological applications.
The UROBITUR features a 7-segment LED display for clear power indication and user-friendly controls for convenient operation. With a maximum output power of up to 400W and multiple operating modes, the system provides flexible energy delivery for different surgical requirements.
The unit supports Bi-Cut, Bi-Coag, Bipolar, Seal and Saline TURP modes, making it suitable for a wide range of urological electrosurgical procedures. It also offers 99 user-programmable programs, allowing customized settings for professional surgical use.
Key Features
- Advanced Bipolar Technology – Designed for bipolar electrosurgical applications including TURP.
- Bipolar Saline TURP Support – Suitable for procedures requiring bipolar technology with saline irrigation.
- Up to 400W Maximum Output – Provides high-power capability for demanding electrosurgical applications.
- Multiple Operating Modes – Includes Bi-Cut, Bi-Coag, Bipolar, Seal and Saline TURP functions.
- 7-Segment LED Display – Clear digital indication of selected power settings.
- 99 User-Programmable Programs – Allows customized operating settings for different procedures.
- Precise Power Adjustment – Separate controls for Bi-Cut and Bi-Coag output.
- Professional Urology Application – Designed for use in urological surgical environments.

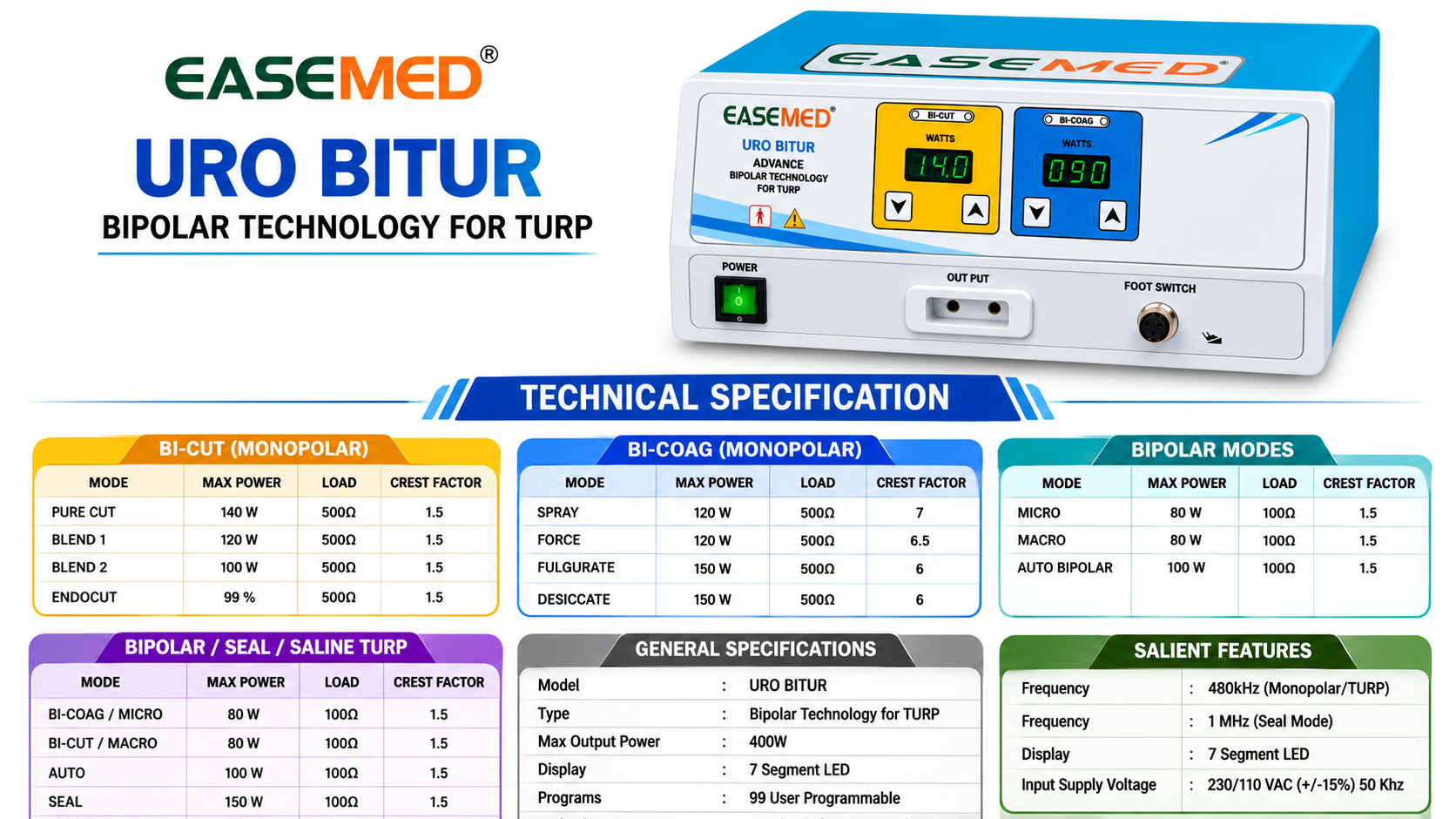

Technical Specifications
Bi-Cut (Monopolar)
| Mode | Maximum Power | Load | Crest Factor |
|---|---|---|---|
| Pure Cut | 140 W | 500 Ω | 1.5 |
| Blend 1 | 120 W | 500 Ω | 1.5 |
| Blend 2 | 100 W | 500 Ω | 1.5 |
| Endocut | 99% | 500 Ω | 1.5 |
Bi-Coag (Monopolar)
| Mode | Maximum Power | Load | Crest Factor |
|---|---|---|---|
| Spray | 120 W | 500 Ω | 7 |
| Force | 120 W | 500 Ω | 6.5 |
| Fulgurate | 150 W | 500 Ω | 6 |
| Desiccate | 150 W | 500 Ω | 6 |
Bipolar Modes
| Mode | Maximum Power | Load | Crest Factor |
|---|---|---|---|
| Micro | 80 W | 100 Ω | 1.5 |
| Macro | 80 W | 100 Ω | 1.5 |
| Auto Bipolar | 100 W | 100 Ω | 1.5 |
Bipolar / Seal / Saline TURP
| Mode | Maximum Power | Load | Crest Factor |
|---|---|---|---|
| Bi-Coag / Micro | 80 W | 100 Ω | 1.5 |
| Bi-Cut / Macro | 80 W | 100 Ω | 1.5 |
| Auto | 100 W | 100 Ω | 1.5 |
| Seal | 150 W | 100 Ω | 1.5 |
General Specifications
| Specification | Details |
|---|---|
| Brand | EASEMED |
| Model | URO BITUR |
| Type | Bipolar Technology for TURP |
| Maximum Output Power | 400 W |
| Display | 7-Segment LED |
| Programs | 99 User Programmable |
Salient Specifications
| Specification | Details |
|---|---|
| Frequency – Monopolar/TURP | 480 kHz |
| Frequency – Seal Mode | 1 MHz |
| Display | 7-Segment LED |
| Input Supply Voltage | 230/110 VAC (±15%) |
| Input Frequency | As specified on supplied product specification |
Applications
The EASEMED UROBITUR Electrosurgical Generator is designed primarily for professional urology and TURP applications, including:
- Bipolar TURP
- Saline TURP
- Urological electrosurgery
- Bipolar cutting procedures
- Bipolar coagulation procedures
- Electrosurgical tissue cutting and coagulation
- Urological procedures requiring bipolar technology
- Seal-mode applications where applicable
Standard Accessories
- Chuck Handle with Electrodes
- Bipolar Forceps with Cable
- Monopolar / Bipolar & Seal Double Footswitch
- Disposable Hand Switch Pencil
- Patient Plate with Cord

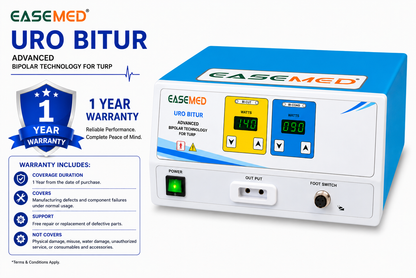

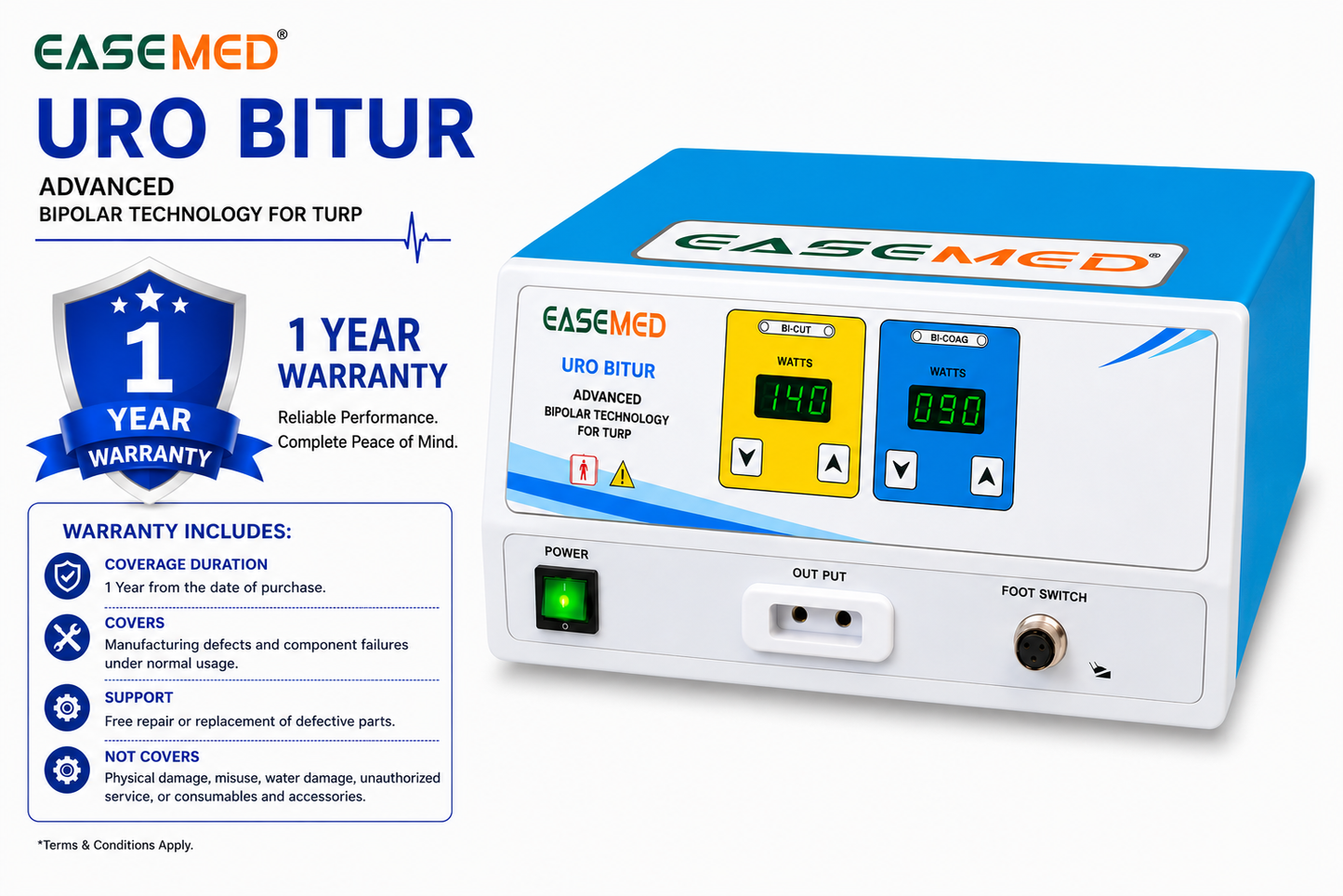

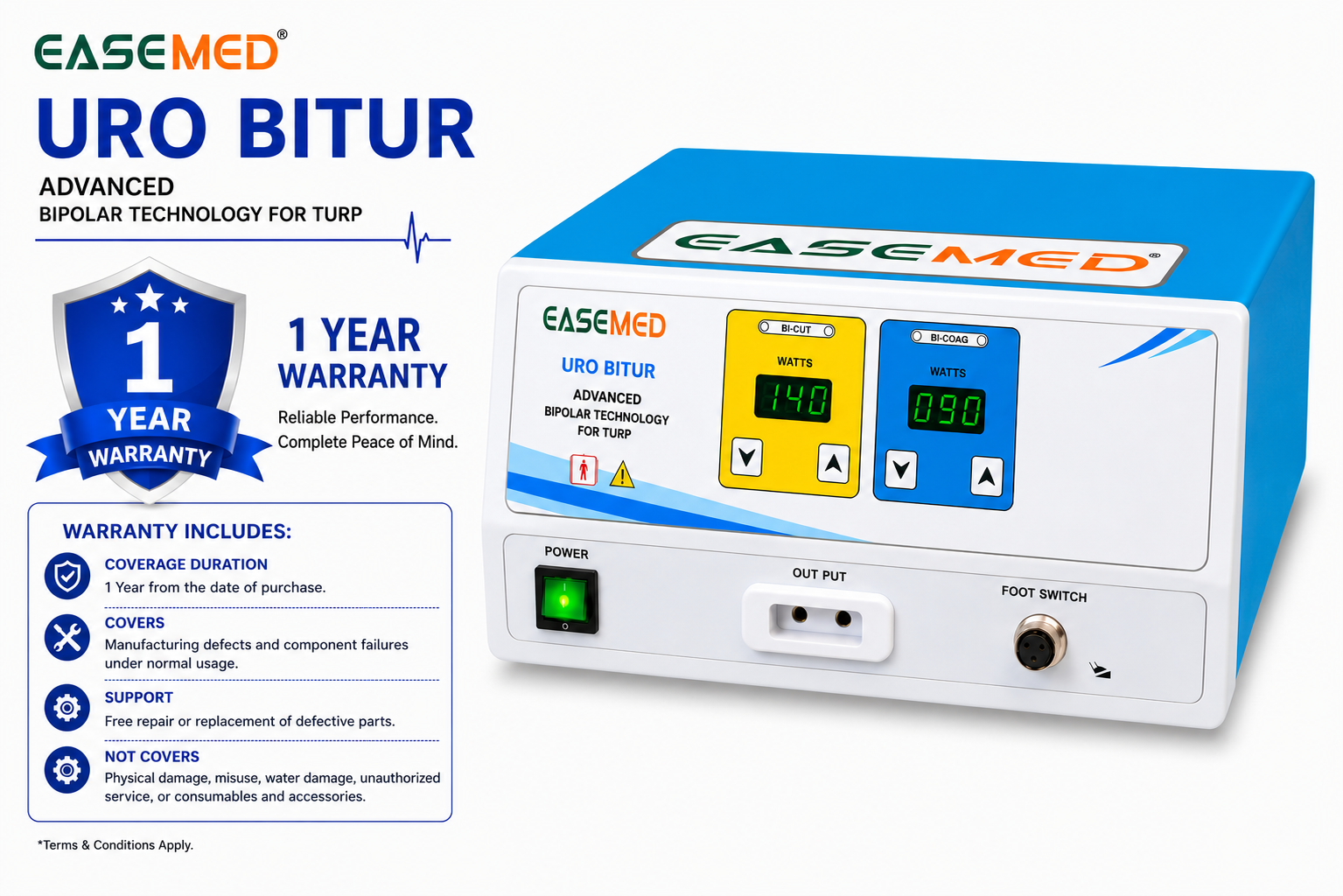

Warranty
1 Year Warranty Included
The EASEMED UROBITUR comes with a 1-year warranty against manufacturing defects under normal operating conditions. Warranty coverage is subject to the applicable terms and conditions. Damage caused by misuse, unauthorized servicing, physical damage, or improper operation may not be covered.
ISO CERTIFIED
FDA APPROVED
CE CERTIFIED
