EASEMED Smart 4 Plus Advance 400W Electrosurgical Generator Digital Monopolar Bipolar Cautery Machine
EASEMED Smart 4 Plus Advance 400W Electrosurgical Generator Digital Monopolar Bipolar Cautery Machine
Couldn't load pickup availability
Product Description

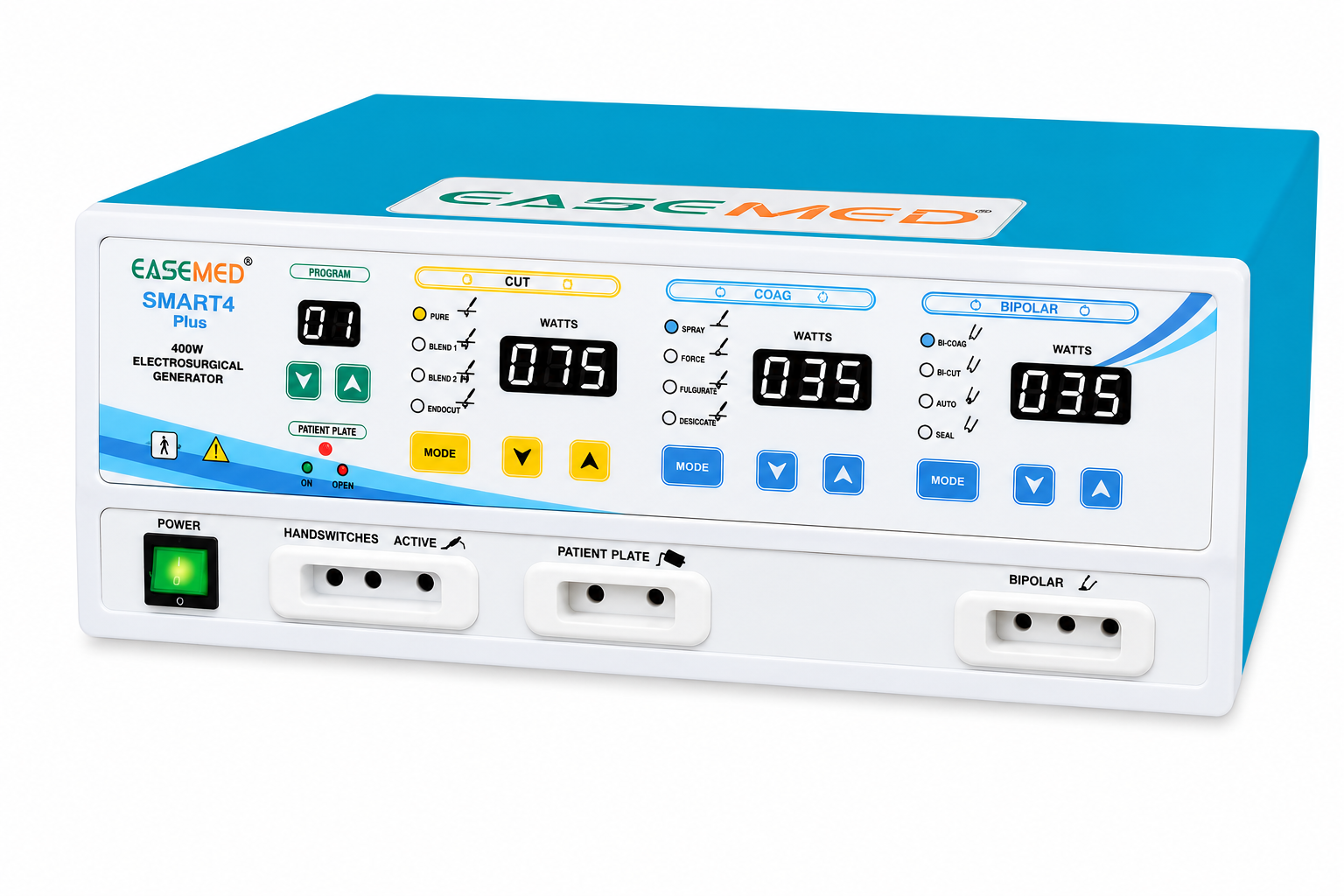

EASEMED Smart 4 Plus Advance 400W Electrosurgical Generator
The EASEMED Smart 4 Plus Advance is a 400W digital electrosurgical generator designed for professional monopolar and bipolar electrosurgical applications. It combines precise energy control, digital push-button operation, programmable memory and integrated safety features in a compact and user-friendly design.
The generator provides multiple monopolar cutting and coagulation modes, including Pure Cut, Blend 1, Blend 2, Endocut, Spray, Force, Fulgurate and Desiccate. Its dedicated bipolar output supports Bi-Coag, Bi-Cut, Auto and Seal modes for versatile surgical applications.
With a 3-digit LED display, digital controls and program memory function, the Smart 4 Plus allows convenient adjustment and monitoring of electrosurgical settings. The system also incorporates patient plate monitoring with visual and audio alarm, overload protection, automatic cut-off and system fault detection for enhanced operational safety.
The EASEMED Smart 4 Plus 400W Cautery Machine is suitable for a wide range of professional surgical applications including general surgery, laparoscopic procedures, gynecology, urology, ENT and other electrosurgical procedures.

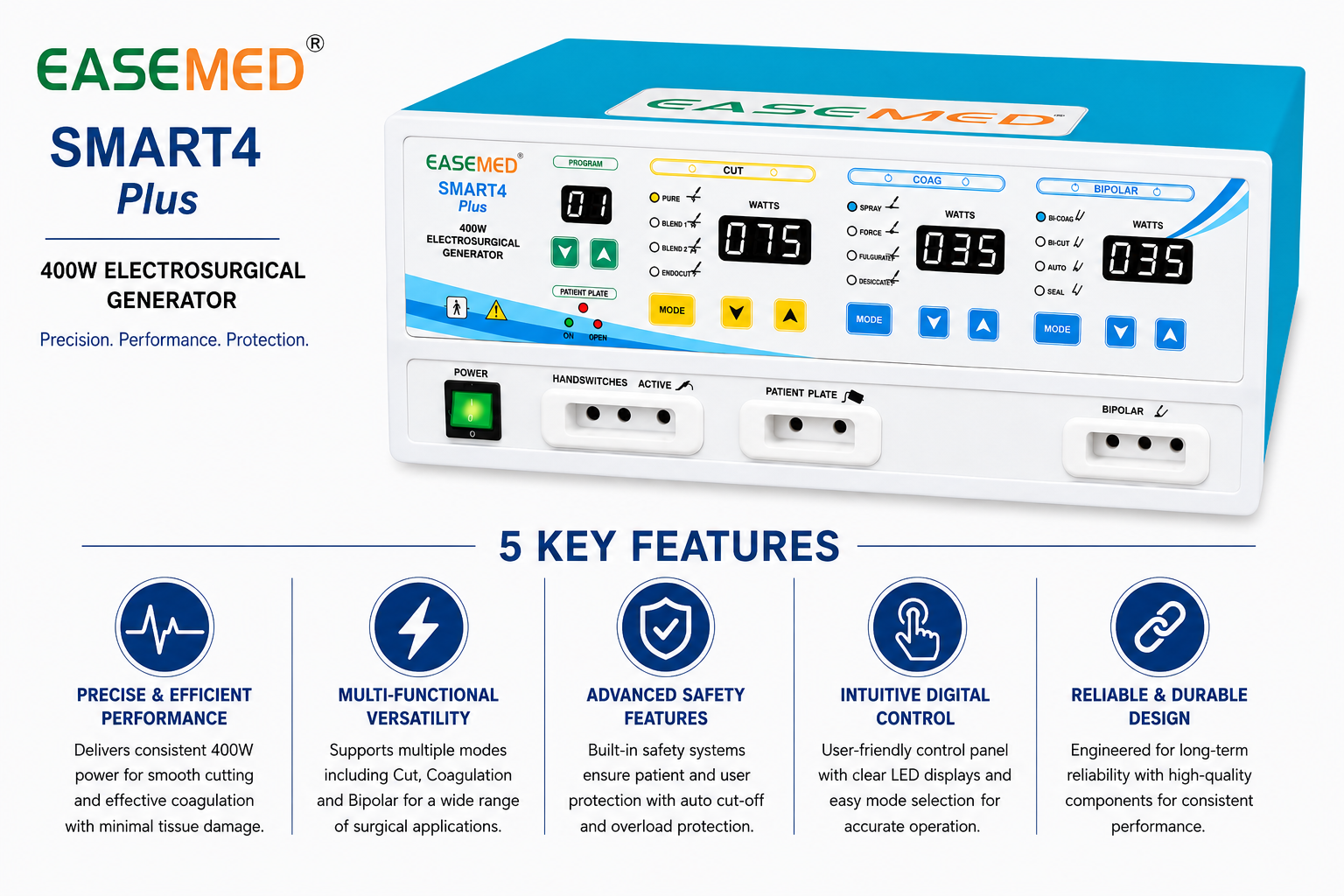

Key Features
1. 400W High-Performance Output
Delivers up to 400W monopolar cutting power for controlled and efficient electrosurgical performance.
2. Multiple Monopolar & Bipolar Modes
Supports Pure, Blend 1, Blend 2, Endocut, Spray, Force, Fulgurate, Desiccate, Bi-Coag, Bi-Cut, Auto and Seal modes.
3. Digital Push-Button Control
User-friendly digital controls allow convenient mode selection and precise power adjustment.
4. Advanced Safety System
Features patient plate monitoring, visual & audio alarm, overload protection, automatic cut-off and system fault detection.
5. Programmable Memory Function
Program memory allows commonly used operating settings to be conveniently stored and recalled.
6. Professional Electrosurgical Design
Designed for reliable performance across multiple surgical applications with dedicated monopolar and bipolar outputs.
Applications
- General Surgery
- Laparoscopic Surgery
- Gynecological Surgery
- Urological Surgery
- ENT Surgery
- Obstetric Procedures
- Plastic & Reconstructive Surgery
- Dermatological Procedures
- Minor Surgical Procedures
- Soft-Tissue Cutting
- Tissue Coagulation
- Monopolar Electrosurgery
- Bipolar Electrosurgery
- Surgical Diatherm

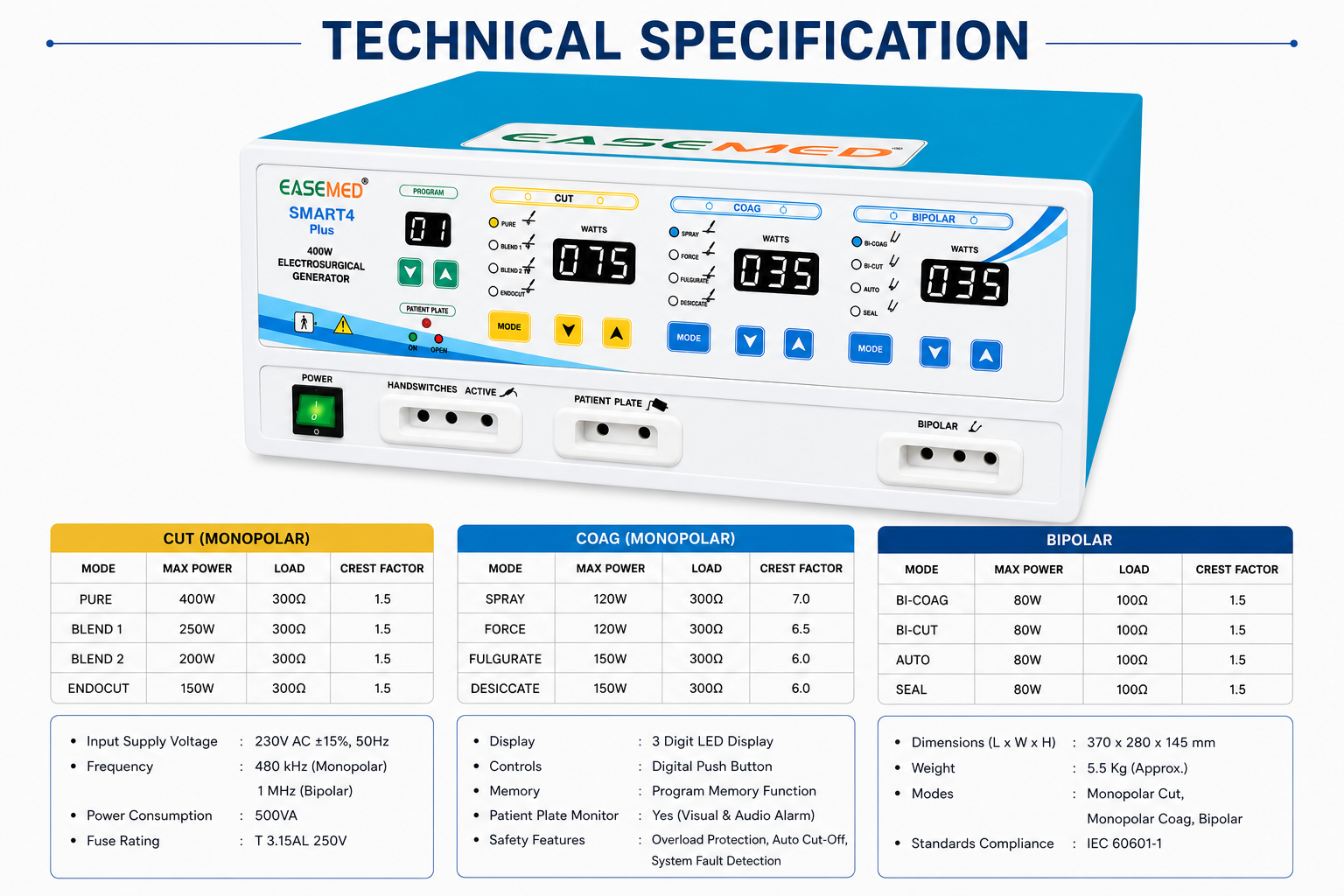

Technical Specifications
| Specification | Details |
|---|---|
| Model | SMART4 Plus |
| Type | Digital Electrosurgical Generator |
| Input Supply Voltage | 230V AC ±15%, 50Hz |
| Power Consumption | 500 VA |
| Monopolar Cut – Pure | 400W |
| Monopolar Cut – Blend 1 | 250W |
| Monopolar Cut – Blend 2 | 200W |
| Monopolar Cut – Endocut | 150W |
| Monopolar Coag – Spray | 120W |
| Monopolar Coag – Force | 120W |
| Monopolar Coag – Fulgurate | 150W |
| Monopolar Coag – Desiccate | 150W |
| Bipolar – Bi-Coag | 80W |
| Bipolar – Bi-Cut | 80W |
| Bipolar – Auto | 80W |
| Bipolar – Seal | 80W |
| Monopolar Load | 300Ω |
| Bipolar Load | 100Ω |
| Crest Factor – Cut | 1.5 |
| Crest Factor – Spray | 7.0 |
| Crest Factor – Force | 6.5 |
| Crest Factor – Fulgurate | 6.0 |
| Crest Factor – Desiccate | 6.0 |
| Monopolar Frequency | 480 kHz |
| Bipolar Frequency | 1 MHz |
| Display | 3-Digit LED Display |
| Controls | Digital Push Button |
| Memory | Program Memory Function |
| Patient Plate Monitor | Yes – Visual & Audio Alarm |
| Safety Features | Overload Protection, Auto Cut-Off, System Fault Detection |
| Dimensions (L × W × H) | 370 × 280 × 145 mm |
| Weight | Approx. 5.5 kg |
| Standards Compliance | IEC 60601-1 |

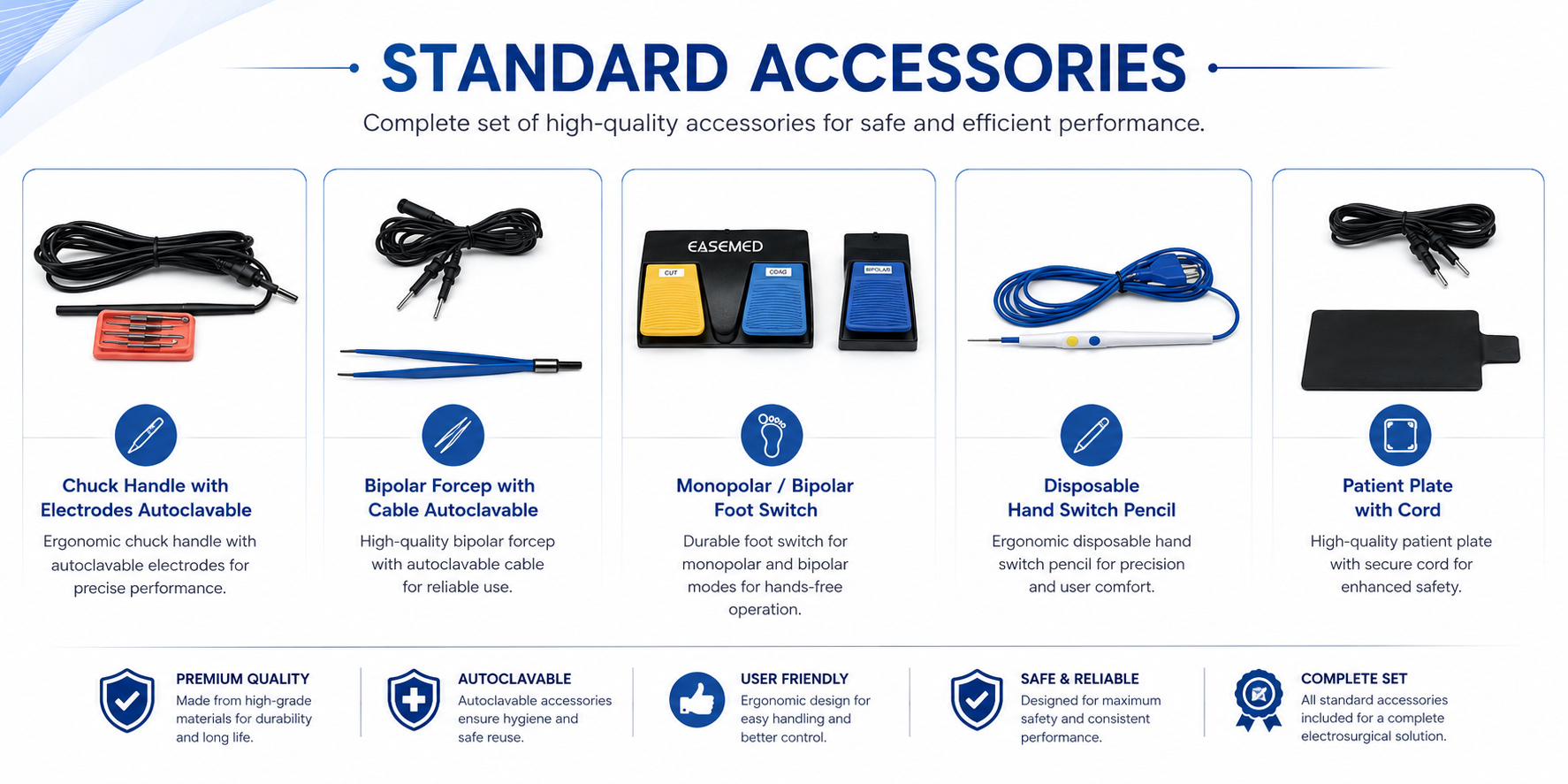

Standard Accessories
- Chuck Handle with Autoclavable Electrodes
- Bipolar Forceps with Autoclavable Cable
- Monopolar / Bipolar Foot Switch
- Disposable Hand Switch Pencil
- Patient Plate with Cable
Warranty
1 YEAR WARRANTY
The EASEMED Smart 4 Plus Advance 400W Electrosurgical Generator is covered by a 1 Year Warranty from the date of purchase against manufacturing defects in material or workmanship.
Warranty coverage is subject to applicable terms and conditions. Damage resulting from misuse, accidents, unauthorized modification or unauthorized servicing is not covered.
