Product Description

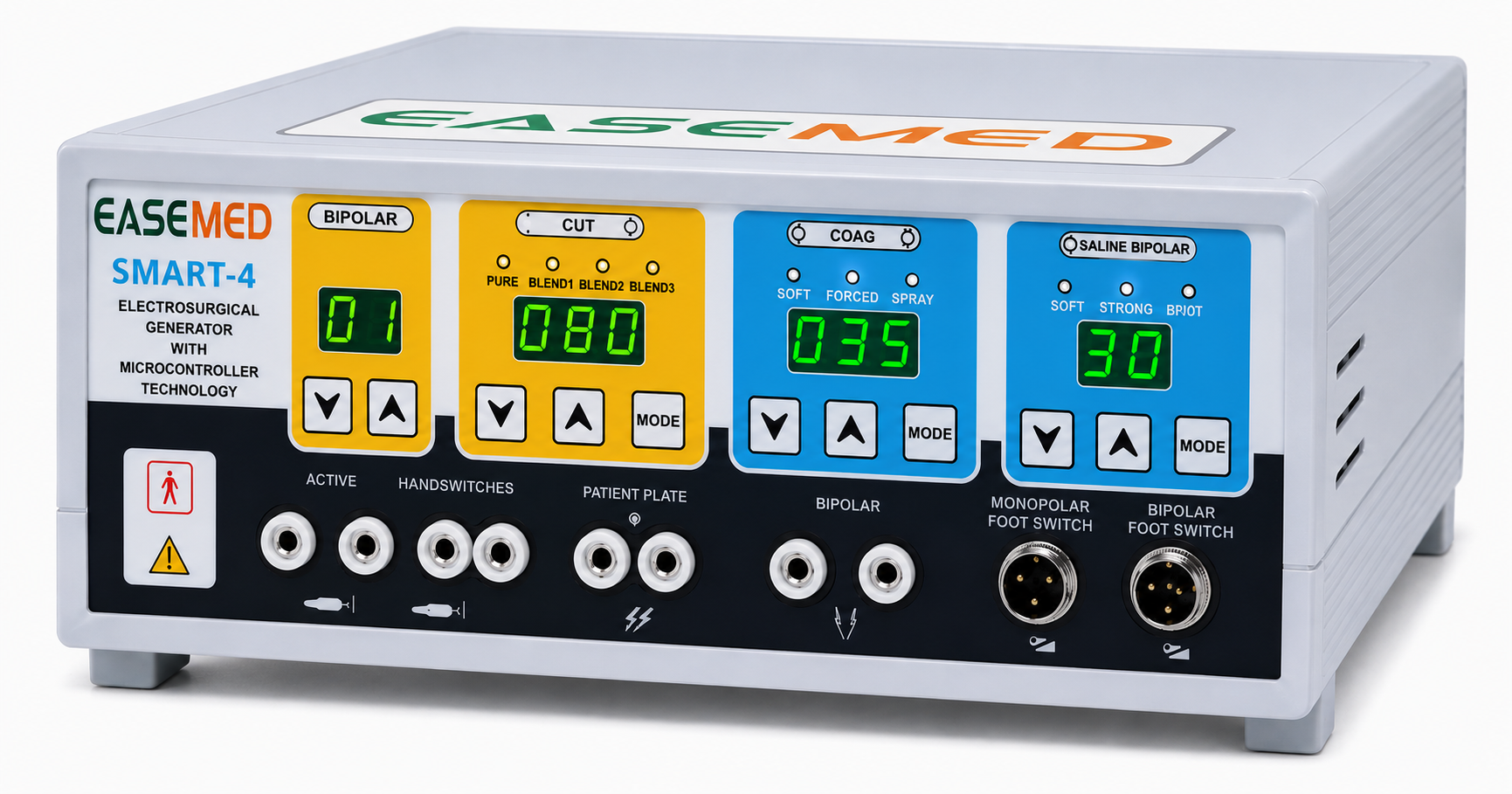

EASEMED Smart 4 400W Programmable Electrosurgical Generator
The EASEMED Smart 4 is a microcontroller-based 400W digital electrosurgical generator designed for professional monopolar, bipolar and saline bipolar electrosurgical applications. It combines programmable energy settings, digital displays and integrated safety features in a compact and user-friendly electrosurgical unit.
The generator provides Pure, Blend 1, Blend 2 and Blend 3 cutting modes, along with Soft, Forced and Spray coagulation modes. It also supports dedicated Bipolar and Saline Bipolar functions, making it suitable for a wide range of surgical procedures requiring controlled electrosurgical energy.
The 4-digit 7-segment LED display provides clear visibility of selected settings and output levels. Separate monopolar and bipolar foot-switch connections allow convenient hands-free operation, while patient plate monitoring, overload protection, short-circuit protection and system error alarm help support safe operation.

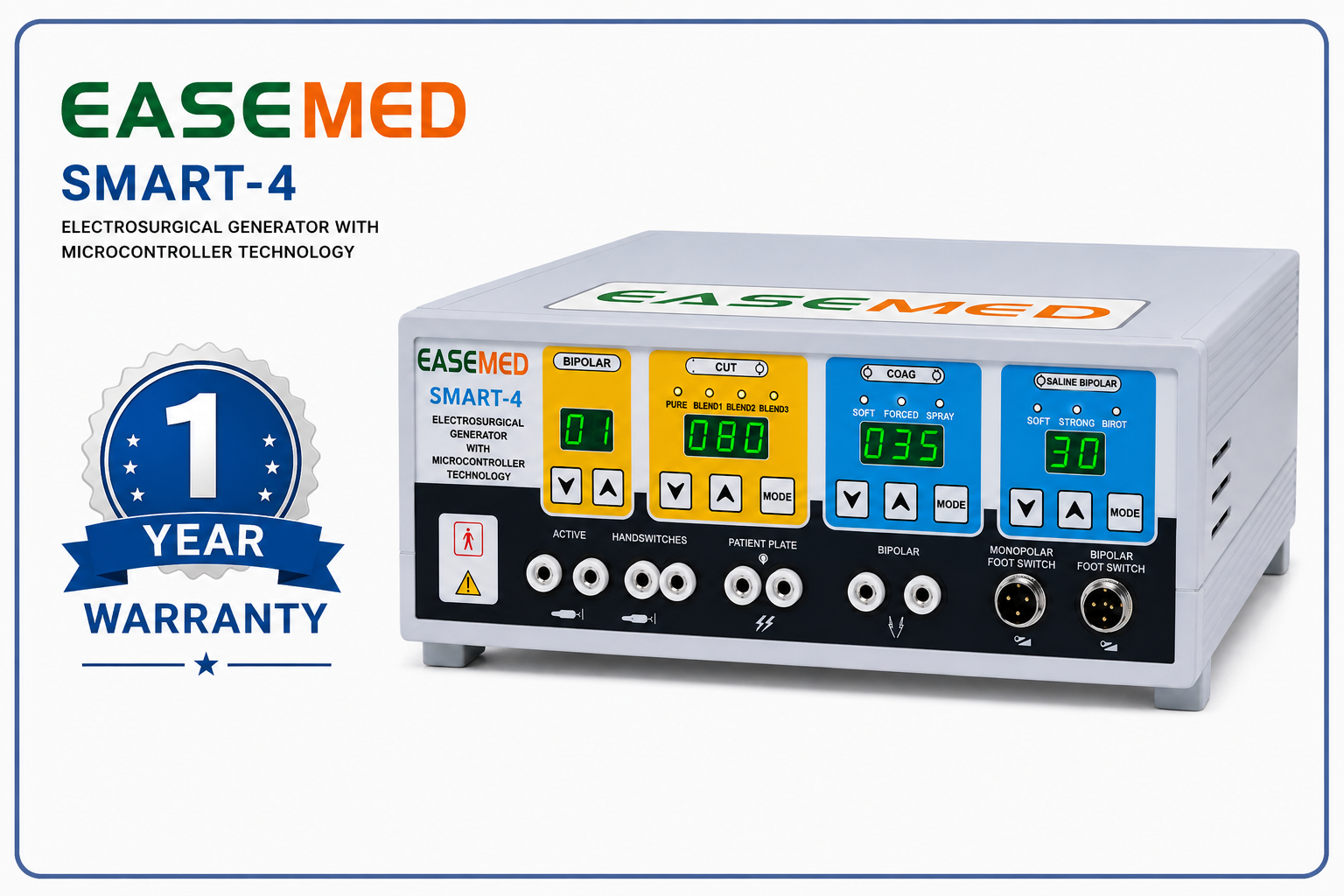

1 Year Warranty
The EASEMED Smart 4 Electrosurgical Generator comes with a 1 Year Warranty against manufacturing defects in material or workmanship, subject to the applicable warranty terms and conditions.

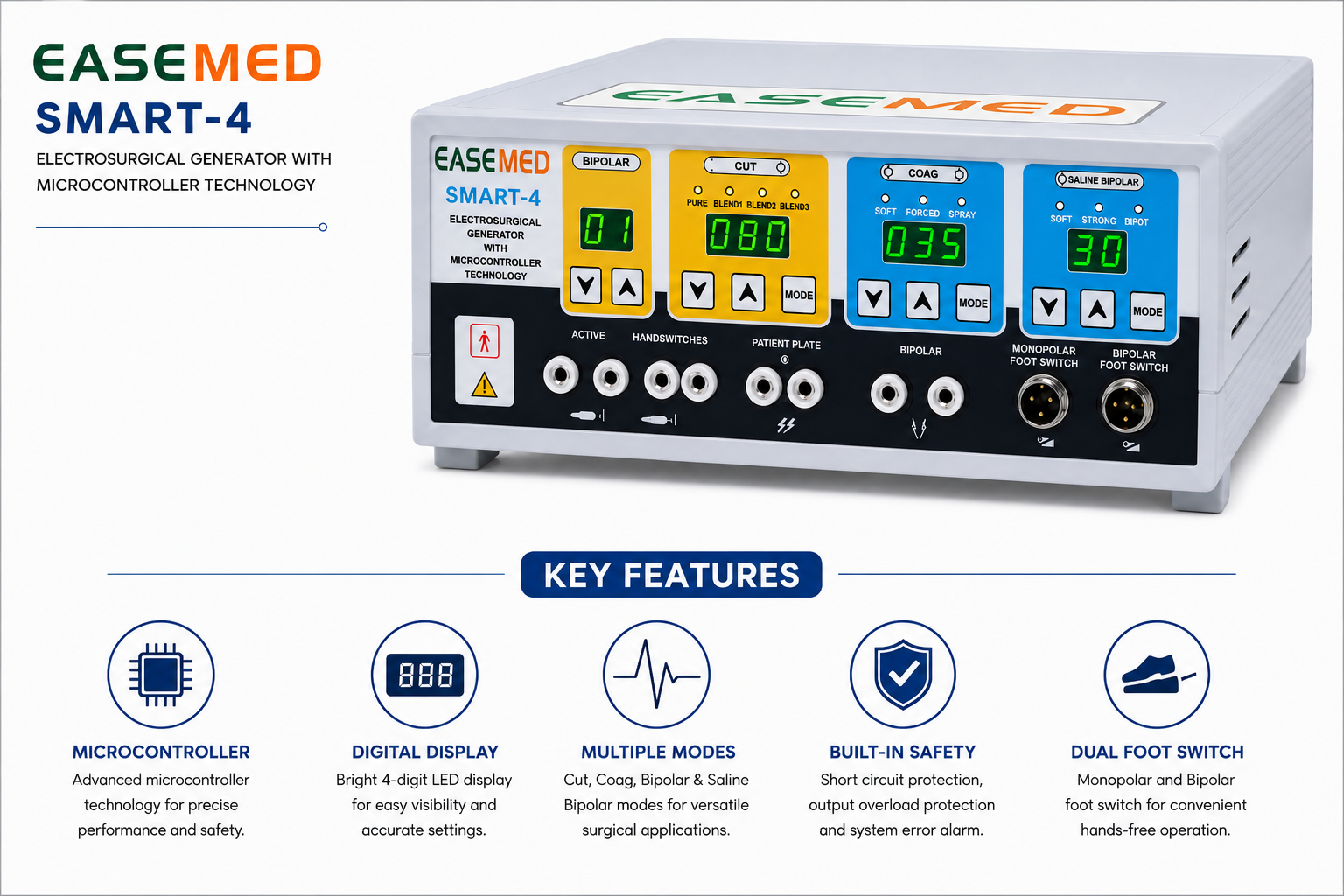

Key Features
1. 400W High-Power Electrosurgical Output
Provides up to 400W monopolar output for controlled cutting and electrosurgical procedures.
2. Programmable Multiple Modes
Supports Pure Cut, Blend 1, Blend 2, Blend 3, Soft Coag, Forced Coag and Spray modes.
3. Bipolar & Saline Bipolar Function
Dedicated bipolar output supports Bipolar and Saline Bipolar modes for versatile surgical applications.
4. Microcontroller-Based Technology
Advanced microcontroller technology enables precise control, programmable settings and consistent energy delivery.
5. Advanced Safety Features
Includes patient plate monitoring, output overload protection, short-circuit protection and system error alarm.
6. Dual Foot-Switch Connectivity
Separate monopolar and bipolar foot-switch connections support convenient hands-free operation.
7. Digital 4-Digit LED Display
Bright 4-digit 7-segment LED displays provide easy visibility of power and operating settings.
Applications
- General Surgery
- Laparoscopic Surgery
- Gynecological Surgery
- Obstetric Surgery
- Urological Surgery
- ENT Surgery
- Plastic & Reconstructive Surgery
- Dermatological Procedures
- Minor Surgical Procedures
- Soft-Tissue Cutting
- Electrosurgical Coagulation
- Monopolar Electrosurgery
- Bipolar Electrosurgery
- Saline Bipolar Procedures
- Surgical Diathermy

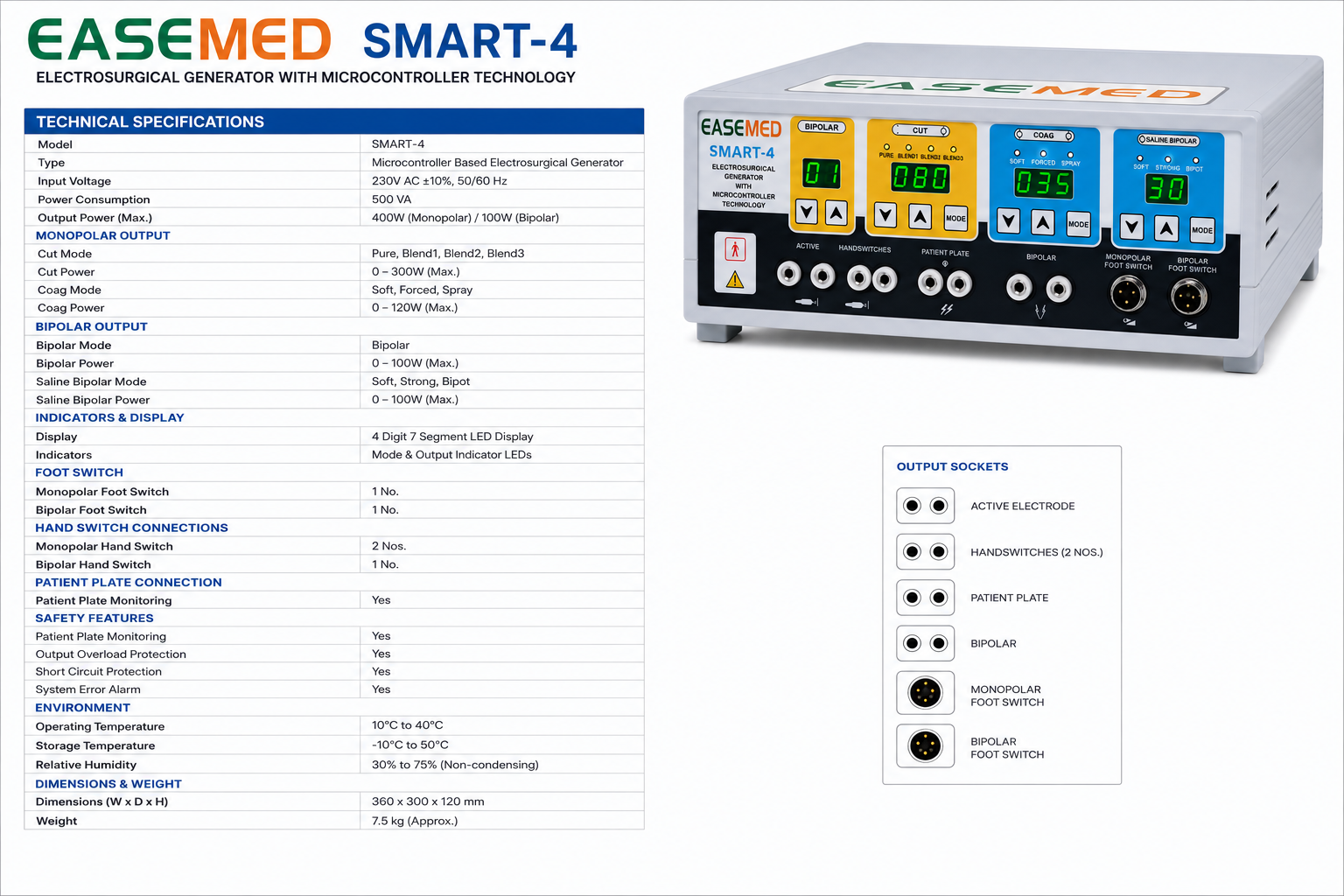

Technical Specifications
| Specification | Details |
|---|---|
| Model | SMART-4 |
| Type | Microcontroller-Based Electrosurgical Generator |
| Input Voltage | 230V AC ±10%, 50/60 Hz |
| Power Consumption | 500 VA |
| Maximum Monopolar Output | 400W |
| Maximum Bipolar Output | 100W |
| Cut Modes | Pure, Blend 1, Blend 2, Blend 3 |
| Cut Power | 0–300W Max. |
| Coag Modes | Soft, Forced, Spray |
| Coag Power | 0–120W Max. |
| Bipolar Mode | Bipolar |
| Bipolar Power | 0–100W Max. |
| Saline Bipolar Modes | Soft, Strong, Bipolar |
| Saline Bipolar Power | 0–100W Max. |
| Display | 4-Digit 7-Segment LED Display |
| Indicators | Mode & Output Indicator LEDs |
| Monopolar Foot Switch | 1 No. |
| Bipolar Foot Switch | 1 No. |
| Monopolar Hand Switch | 2 Nos. |
| Bipolar Hand Switch | 1 No. |
| Patient Plate Monitoring | Yes |
| Output Overload Protection | Yes |
| Short Circuit Protection | Yes |
| System Error Alarm | Yes |
| Operating Temperature | 10°C to 40°C |
| Storage Temperature | -10°C to 50°C |
| Relative Humidity | 30% to 75% Non-Condensing |
| Dimensions (W × D × H) | 360 × 300 × 120 mm |
| Weight | Approx. 7.5 kg |
Standard Accessories Included
- Chuck Handle with Autoclavable Electrodes
- Bipolar Forceps with Autoclavable Cable
- Monopolar / Bipolar Foot Switch
- Disposable Hand Switch Pencil
- Patient Plate with Cable
Warranty
1 YEAR WARRANTY
The EASEMED Smart 4 Electrosurgical Generator is covered by a 1 Year Warranty from the date of purchase against manufacturing defects in material or workmanship.
Warranty coverage is subject to the applicable terms and conditions. Damage caused by misuse, accidental damage, unauthorized modification or unauthorized servicing is not covered.
ISO CERTIFIED
FDA APPROVED
CE CERTIFIED
