EASEMED SMART 3 300W Digital Electrosurgical Generator | Monopolar & Bipolar Cautery Machine
EASEMED SMART 3 300W Digital Electrosurgical Generator | Monopolar & Bipolar Cautery Machine
Couldn't load pickup availability
Product Description

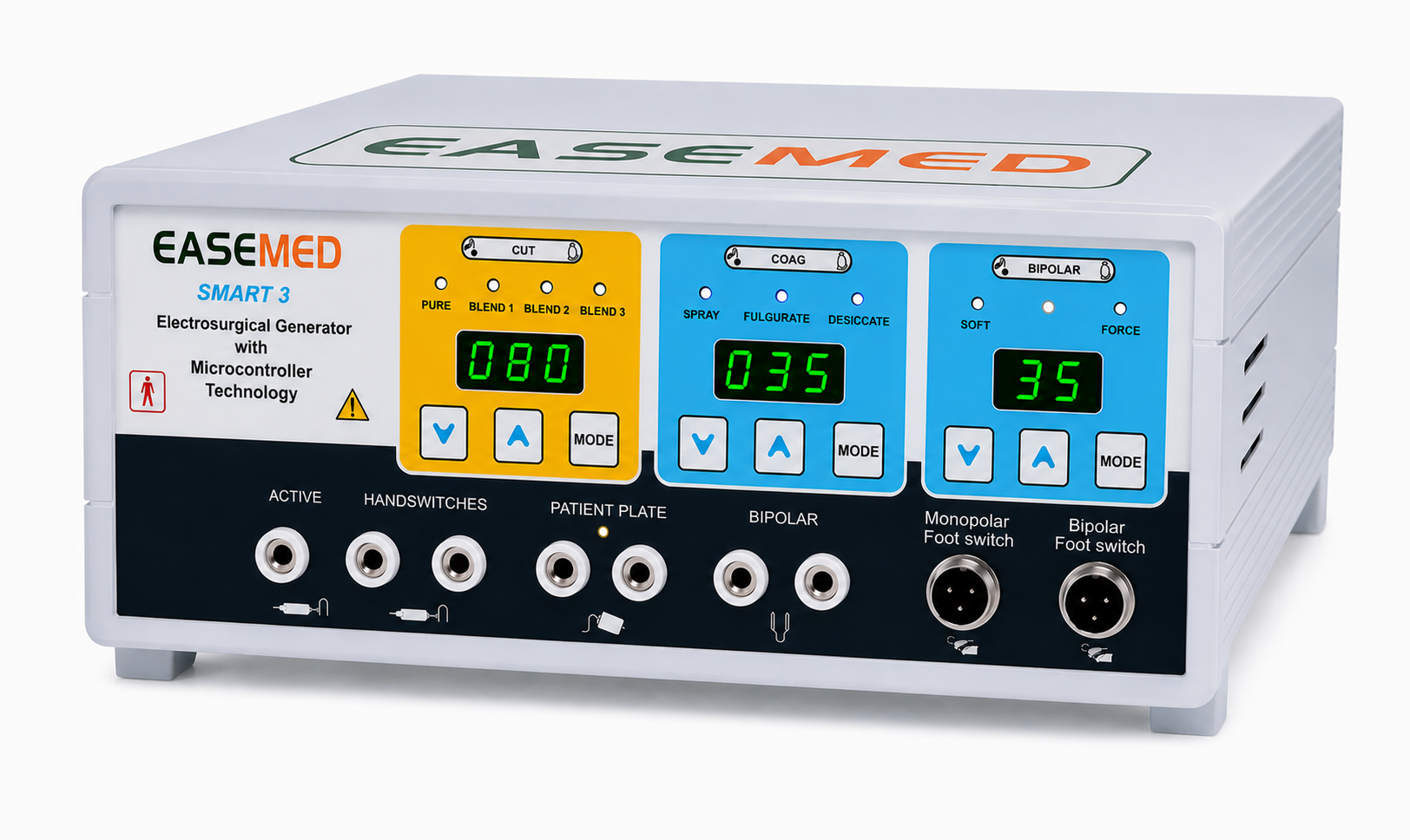

EASEMED SMART 3 300W Electrosurgical Generator
The EASEMED SMART 3 Electrosurgical Generator is a digital electrosurgical unit designed for professional surgical applications requiring controlled cutting, coagulation and bipolar electrosurgery. Featuring microcontroller technology and 480 kHz high-frequency operation, the SMART 3 provides precise and consistent energy delivery.
The generator offers multiple monopolar cutting modes, including Pure Cut, Blend 1, Blend 2 and Blend 3, along with Spray, Fulgurate and Desiccate coagulation modes. Its dedicated bipolar section provides Soft and Force bipolar modes, allowing versatile use across compatible electrosurgical procedures.
A clear 3-digit LED display, membrane keypad, non-volatile memory and separate monopolar and bipolar foot-switch connections provide convenient operation and control. Built-in overload and short-circuit protection with system fault detection helps support safe and reliable operation.
The EASEMED SMART 3 is supplied as a complete set with essential electrosurgical accessories and is backed by a 1 Year Warranty.

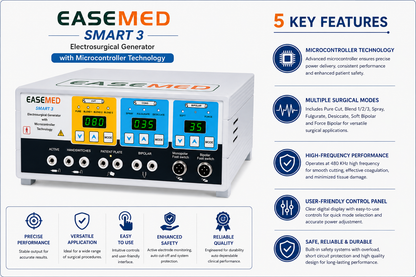

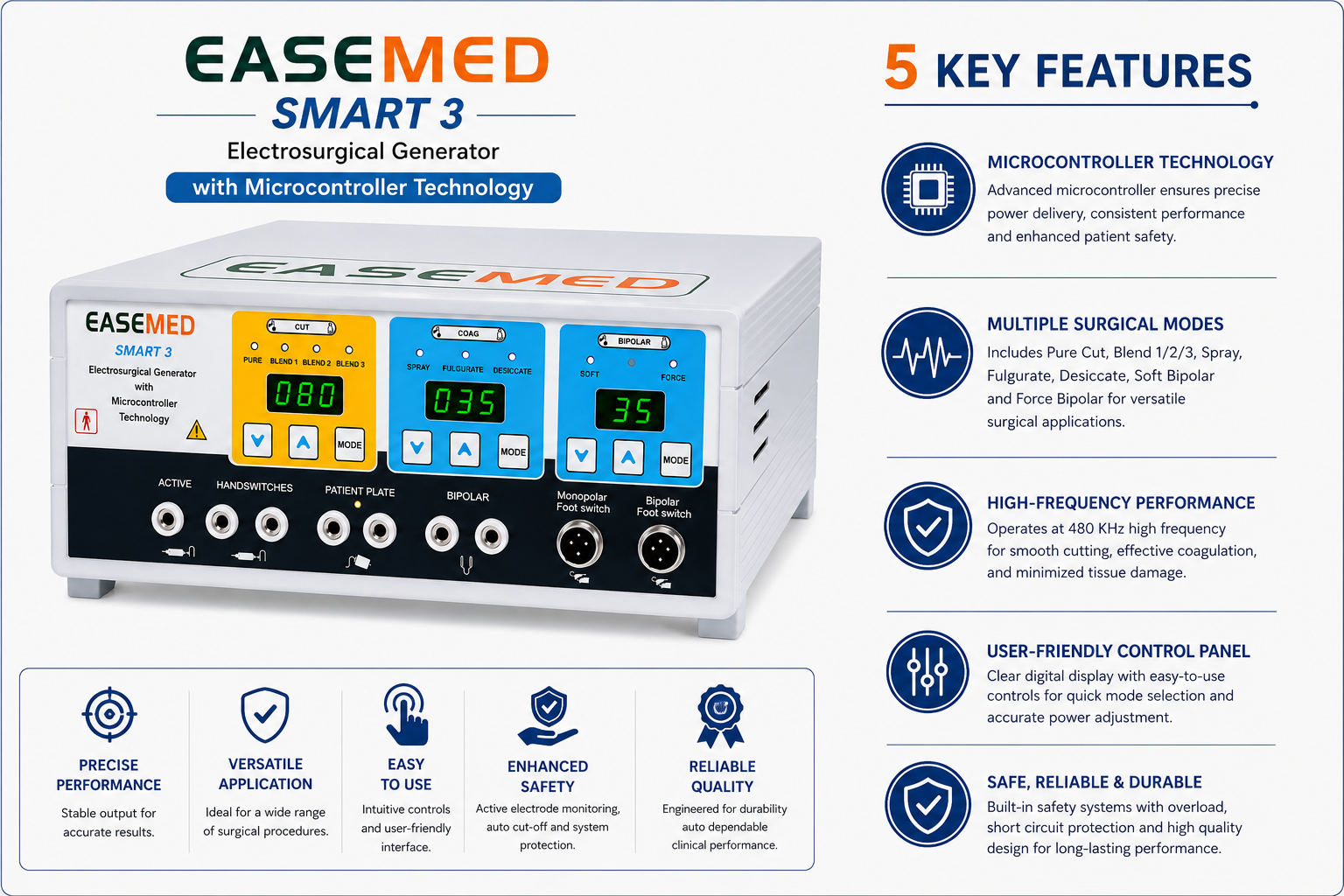

Key Features
1. Microcontroller Technology
Advanced microcontroller-controlled energy delivery for consistent and precise electrosurgical performance.
2. Multiple Electrosurgical Modes
Includes Pure Cut, Blend 1, Blend 2, Blend 3, Spray, Fulgurate, Desiccate, Soft Bipolar and Force Bipolar modes.
3. Monopolar & Bipolar Functionality
Dedicated controls for both monopolar and bipolar electrosurgical applications.
4. Digital Display & Easy Controls
3-digit LED displays and membrane keypad provide straightforward mode selection and power adjustment.
5. Built-In Safety Protection
Overload protection, short-circuit protection and system fault detection help support dependable operation.

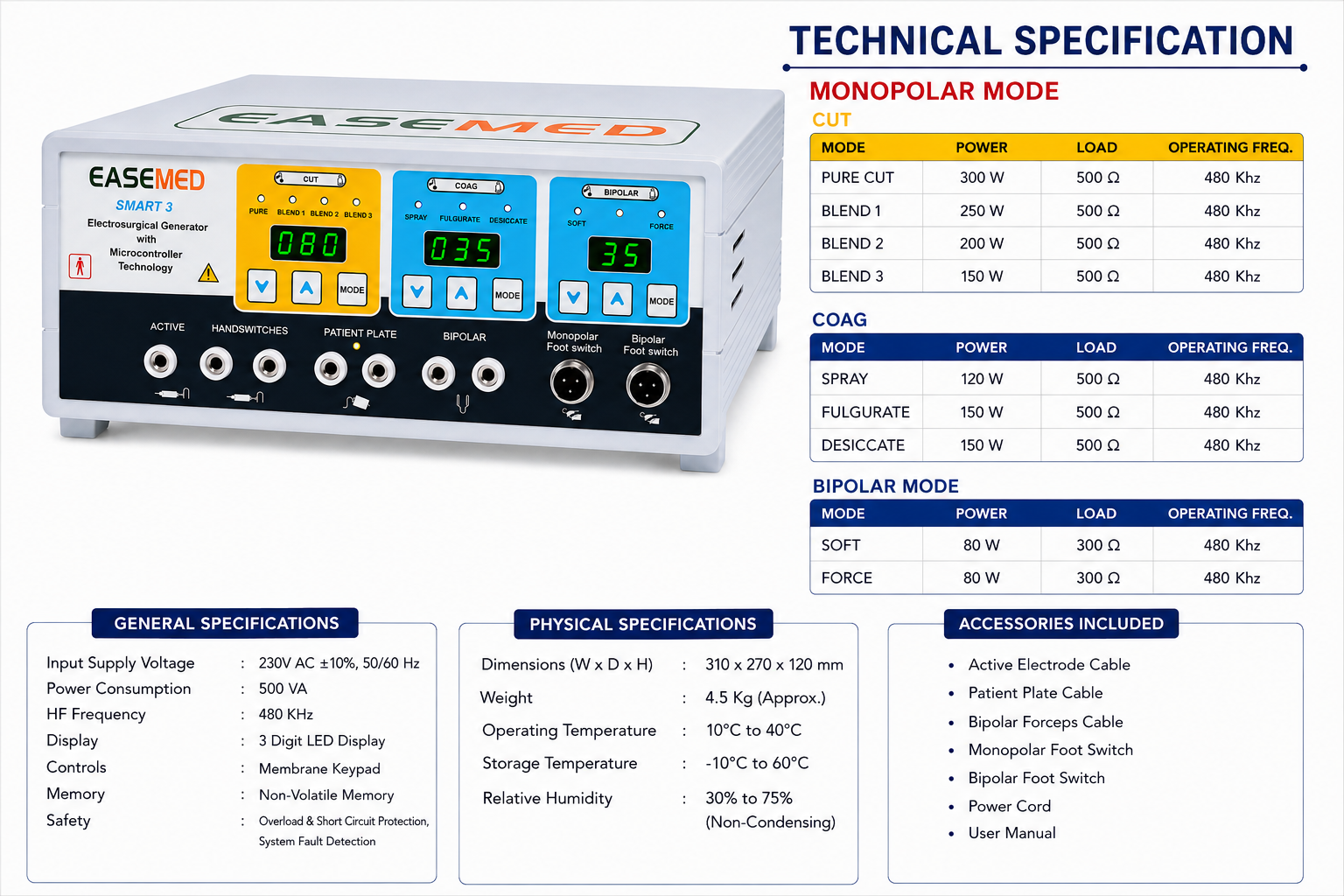

Technical Specifications
| Specification | Details |
|---|---|
| Model | SMART 3 |
| Type | Electrosurgical Generator |
| Technology | Microcontroller Technology |
| Pure Cut | 300 W |
| Blend 1 | 250 W |
| Blend 2 | 200 W |
| Blend 3 | 150 W |
| Spray Coagulation | 120 W |
| Fulgurate | 150 W |
| Desiccate | 150 W |
| Soft Bipolar | 80 W |
| Force Bipolar | 80 W |
| Operating Frequency | 480 kHz |
| Display | 3-Digit LED |
| Controls | Membrane Keypad |
| Memory | Non-Volatile Memory |
| Input Supply | 230V AC ±10%, 50/60 Hz |
| Power Consumption | 500 VA |
| Dimensions (W × D × H) | 310 × 270 × 120 mm |
| Weight | Approx. 4.5 kg |
| Operating Temperature | 10°C to 40°C |
| Storage Temperature | -10°C to 60°C |
| Relative Humidity | 30% to 75%, Non-Condensing |
| Safety | Overload & Short-Circuit Protection, System Fault Detection |
Applications
- General Surgery
- Laparoscopic Surgery
- Gynecological Surgery
- Obstetric Procedures
- Urological Surgery
- ENT Procedures
- Dermatological Procedures
- Plastic & Reconstructive Surgery
- Minor Surgical Procedures
- Soft-Tissue Cutting
- Electrosurgical Coagulation
- Monopolar Electrosurgery
- Bipolar Electrosurgery
- Surgical Diathermy
Standard Accessories Included
- Chuck Handle with Autoclavable Electrodes
- Bipolar Forceps with Autoclavable Cable
- Monopolar / Bipolar Foot Switch
- Disposable Hand Switch Pencil
- Patient Plate with Cable

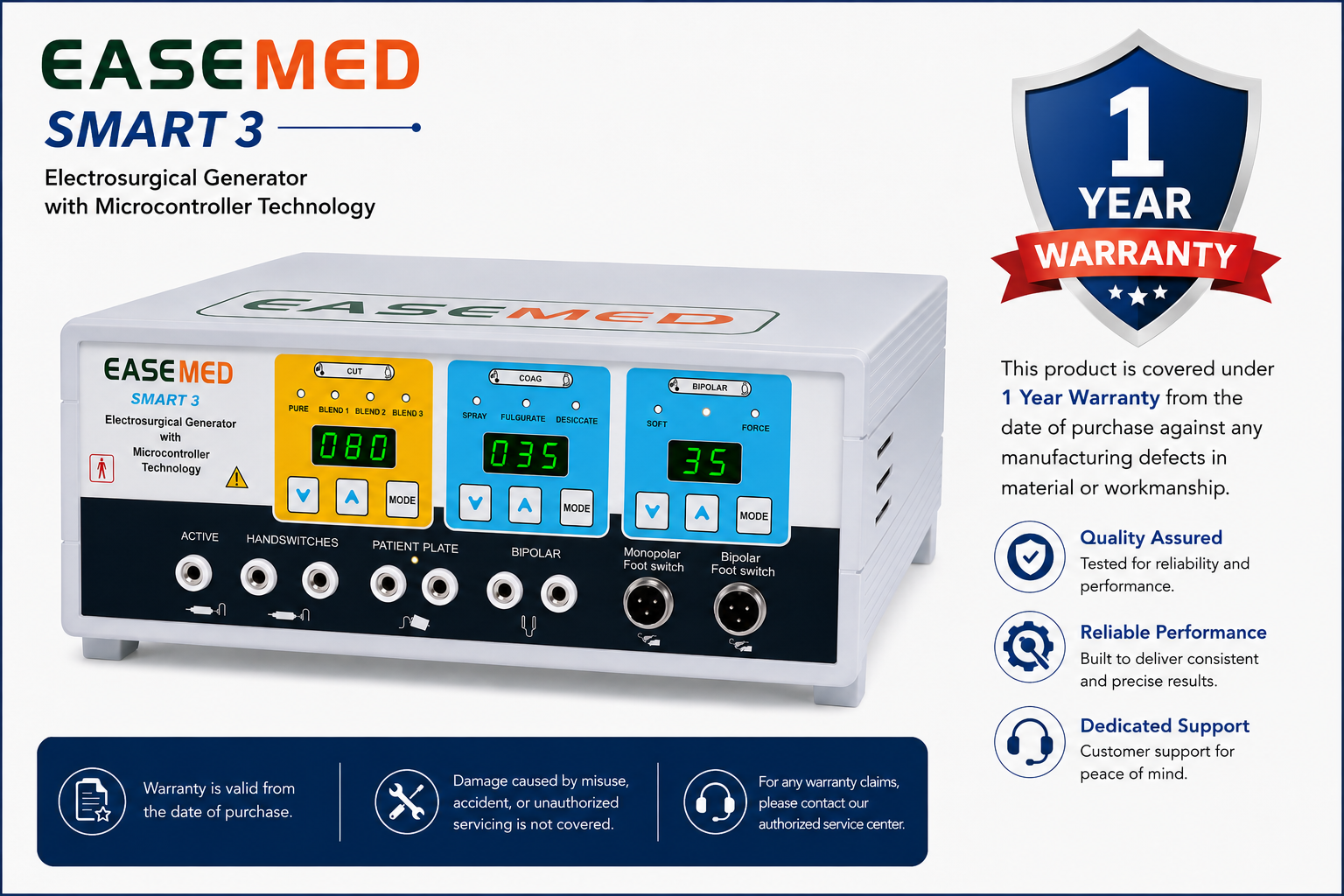

Warranty
1 YEAR WARRANTY
The EASEMED Smart 3 Electrosurgical Generator comes with a 1 Year Warranty from the date of purchase against manufacturing defects in material or workmanship.
Warranty coverage is subject to the applicable terms and conditions. Damage resulting from misuse, accidental damage, unauthorized modification or unauthorized servicing is not covered.
ISO CERTIFIED
FDA APPROVED
CE CERTIFIED
