EASEMED LLS 180 180W LED Light Source for Laparoscopy & Endoscopy | Medical Cold Light Source
EASEMED LLS 180 180W LED Light Source for Laparoscopy & Endoscopy | Medical Cold Light Source
Couldn't load pickup availability

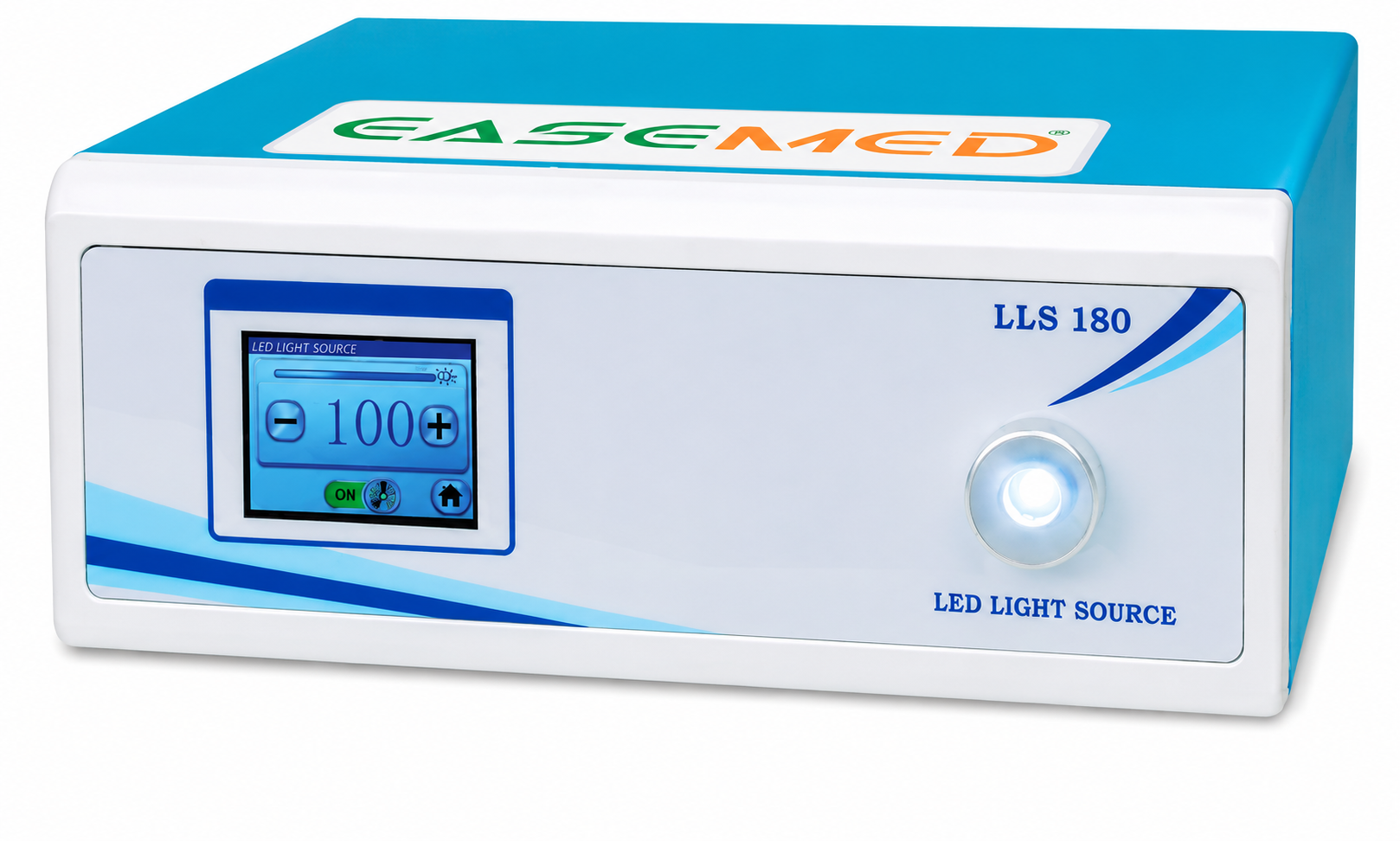

EASEMED LLS 180 180W LED Light Source
The EASEMED LLS 180 LED Light Source is a high-performance medical illumination system designed for laparoscopy, endoscopy and minimally invasive surgical procedures. It provides bright, consistent and high-quality white illumination to support clear visualization during diagnostic and surgical procedures.
Powered by a high-brightness LED light source, the LLS 180 provides illumination of up to ≥180,000 Lux with a 5500K–6500K color temperature, delivering bright white light for enhanced visualization.
The system features a convenient 4.3-inch touchscreen display with digital brightness control from 0–100%, allowing users to easily adjust light intensity according to procedural requirements.
With an LED life of ≥50,000 hours and an efficient silent fan cooling system, the EASEMED LLS 180 is designed for reliable, long-term operation. The standard Storz-type light output port provides compatibility with suitable fiber optic light cables.
This complete set includes a 7 Ft (2.3 Meter) Xenon Safe Fiber Optic Cable, providing flexible connection between the light source and compatible endoscopic equipment.

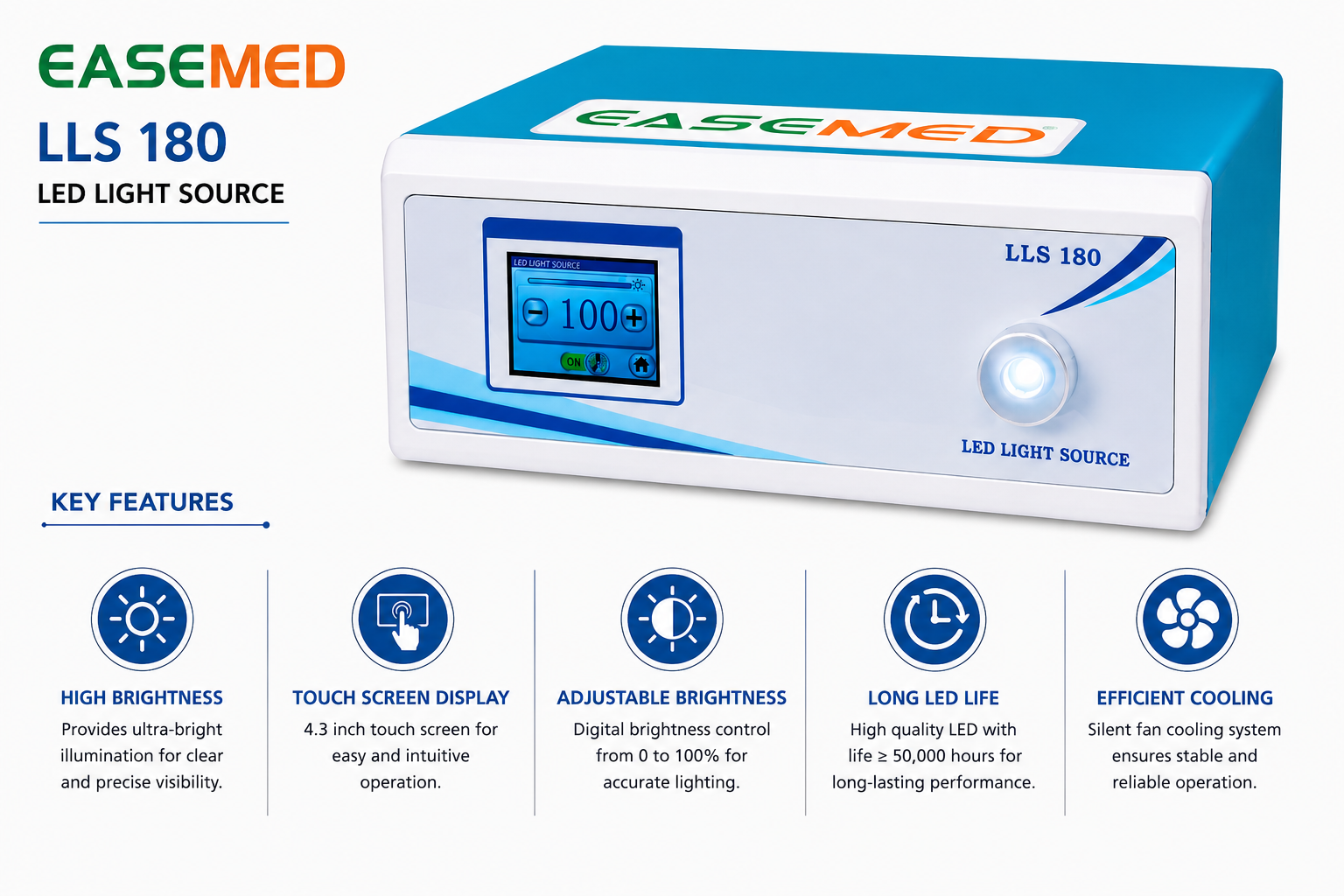

Key Features
1. 180W High-Brightness LED
Provides powerful illumination of up to ≥180,000 Lux for clear visualization during endoscopic and laparoscopic procedures.
2. 4.3-Inch Touchscreen Display
Easy-to-use touchscreen interface provides convenient operation and quick access to light intensity controls.
3. Digital Brightness Control
Adjustable brightness from 0–100% allows precise control of illumination according to procedural requirements.
4. Long LED Service Life
High-quality LED technology provides an expected LED life of ≥50,000 hours, reducing the need for frequent light-source replacement.
5. 5500K–6500K White Light
Produces bright, natural white illumination designed for detailed visualization during medical procedures.
6. Silent Fan Cooling
Integrated silent fan cooling helps maintain stable operating performance during extended use.
7. Storz-Type Light Output
Standard Storz-type light output port enables connection with compatible fiber optic light cables.

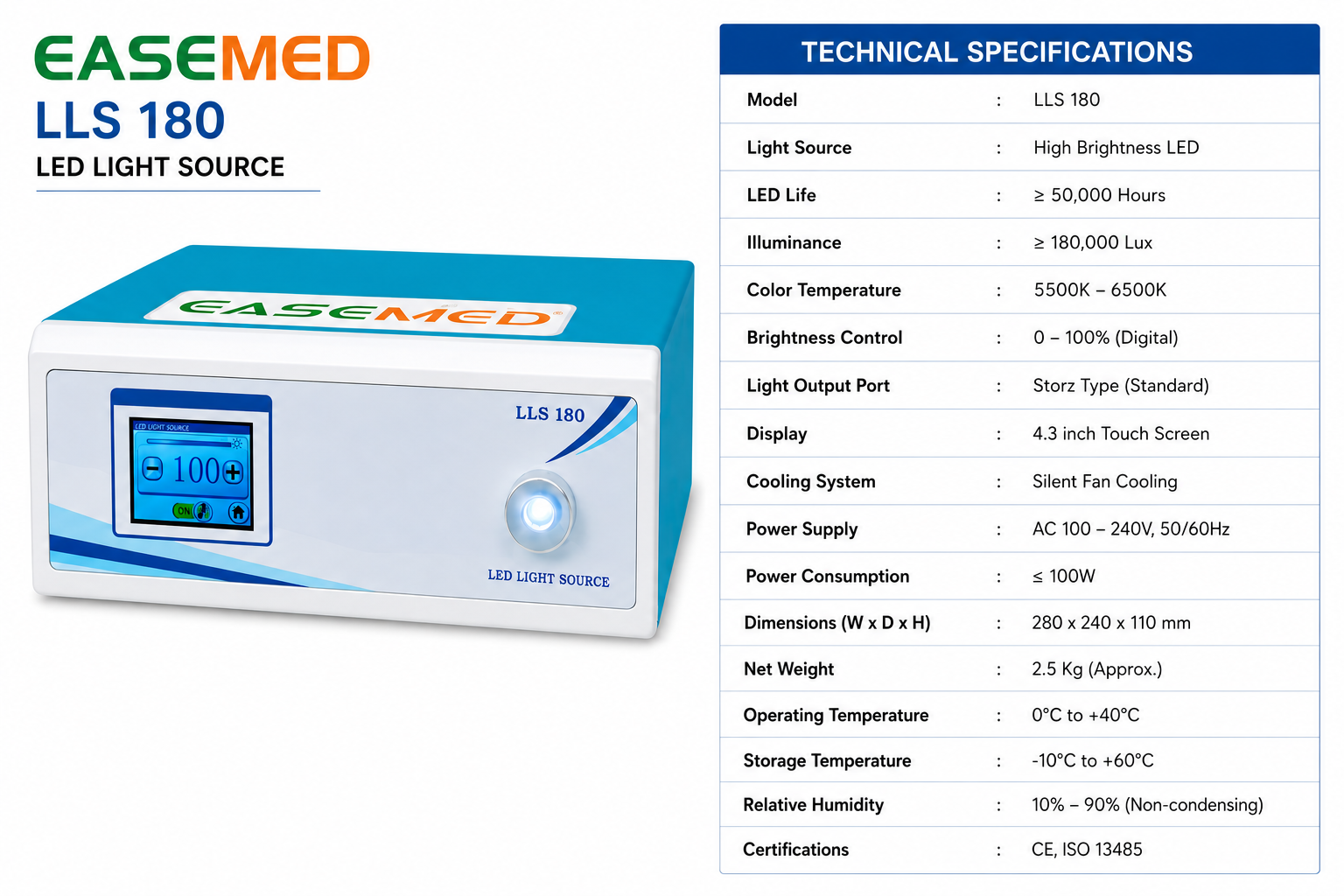

Technical Specifications
| Specification | Details |
|---|---|
| Model | LLS 180 |
| Light Source | High Brightness LED |
| LED Life | ≥ 50,000 Hours |
| Illuminance | ≥ 180,000 Lux |
| Color Temperature | 5500K – 6500K |
| Brightness Control | 0–100% Digital |
| Light Output Port | Storz Type – Standard |
| Display | 4.3-Inch Touchscreen |
| Cooling System | Silent Fan Cooling |
| Power Supply | AC 100–240V, 50/60Hz |
| Power Consumption | ≤ 100W |
| Dimensions (W × D × H) | 280 × 240 × 110 mm |
| Net Weight | Approx. 2.5 kg |
| Operating Temperature | 0°C to +40°C |
| Storage Temperature | -10°C to +60°C |
| Relative Humidity | 10–90% Non-condensing |
| Light Cable | 7 Ft (2.3 Meter) Xenon Safe Fiber Optic Cable |
Applications
The EASEMED LLS 180 LED Light Source is suitable for:
- Laparoscopic Procedures
- Endoscopic Procedures
- General Surgery
- Minimally Invasive Surgery
- Gynecology
- Urology
- ENT Procedures
- Diagnostic Endoscopy

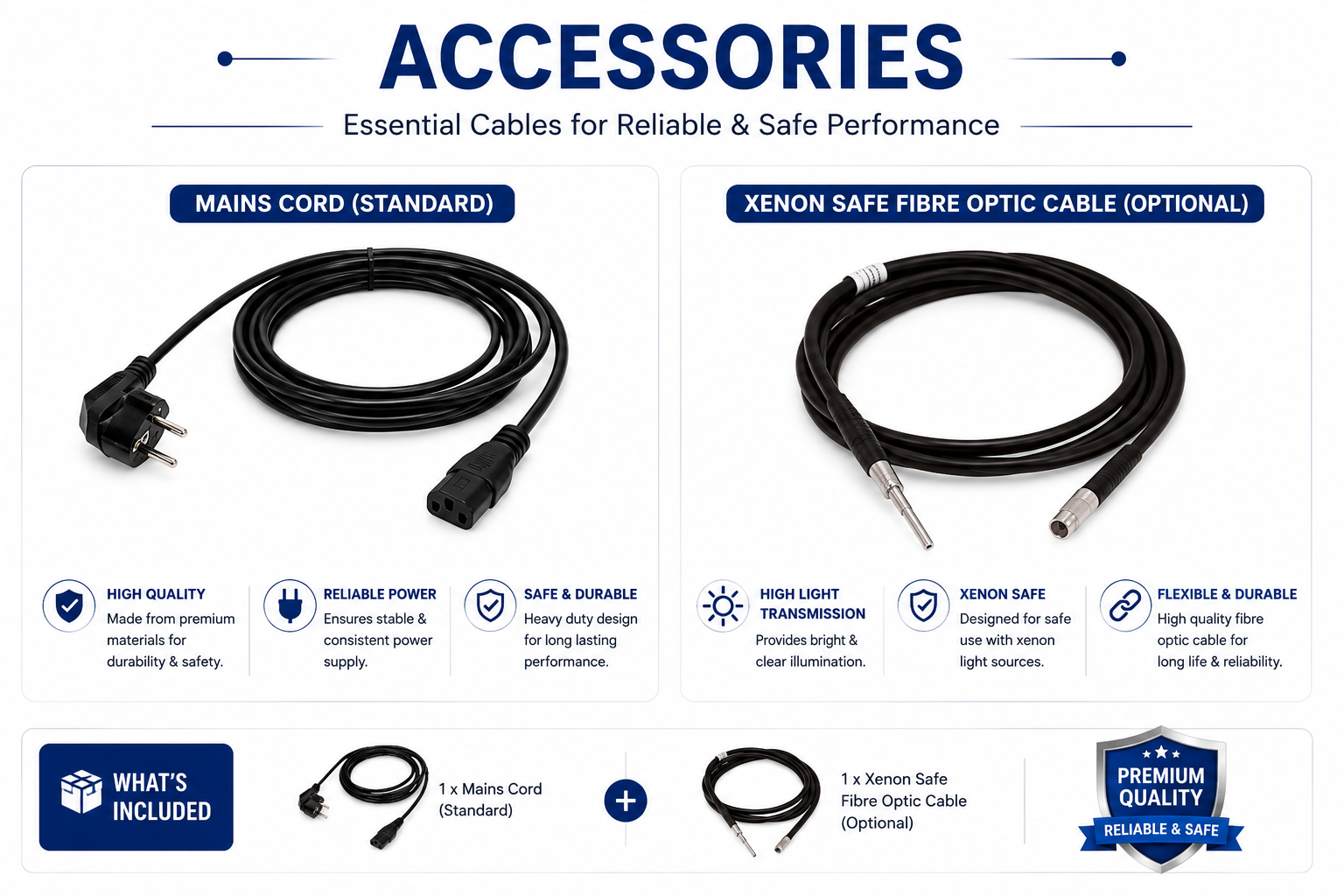

What's Included
- 1 × EASEMED LLS 180 LED Light Source
- 1 × Mains Power Cord
- 1 × 7 Ft (2.3 Meter) Xenon Safe Fiber Optic Cable

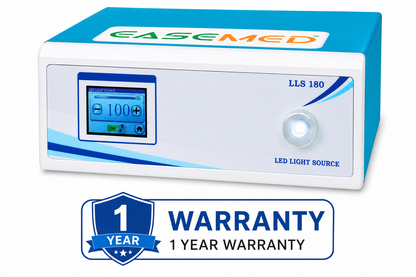

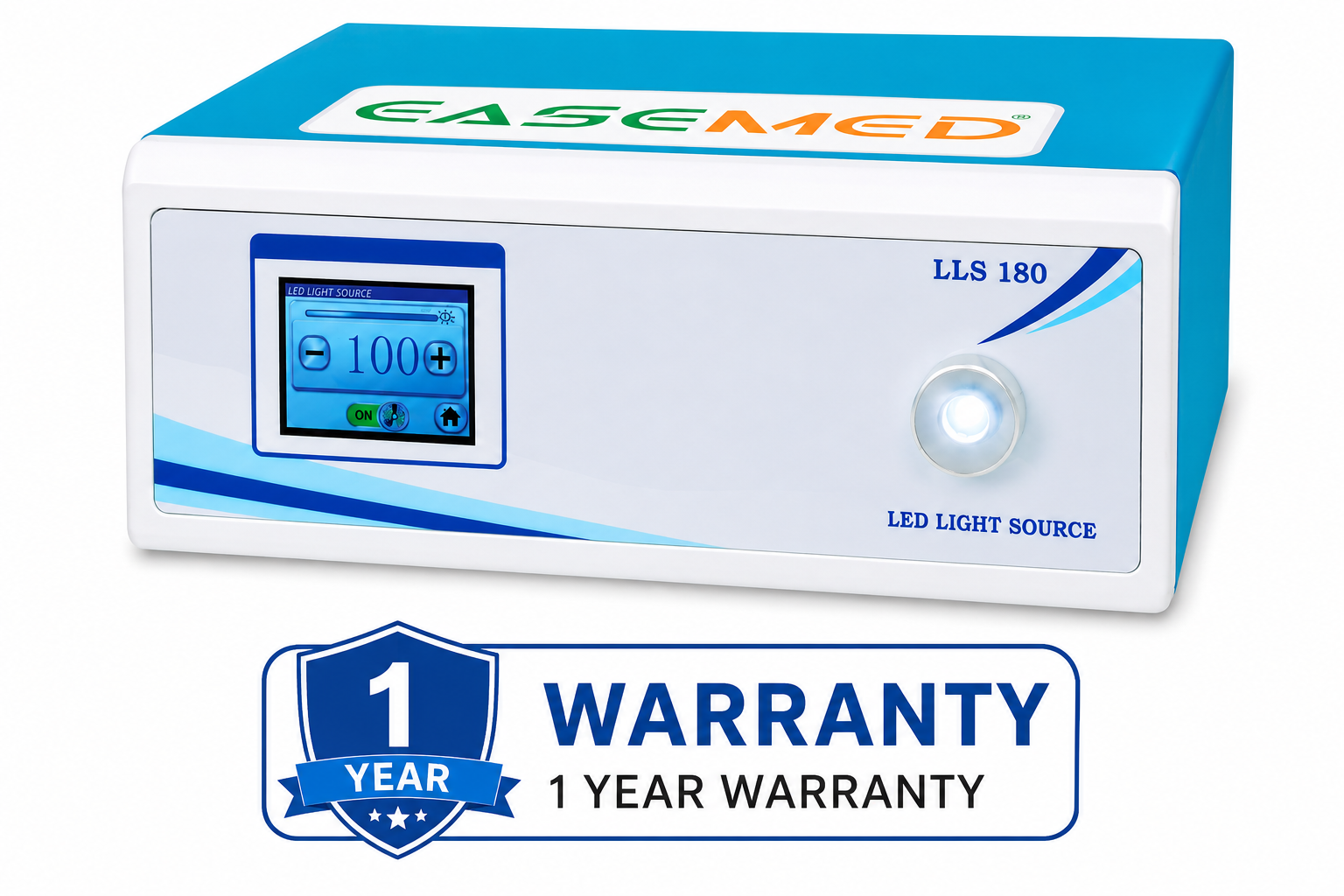

1 Year Warranty
1 YEAR WARRANTY
The EASEMED LLS 180 180W LED Light Source comes with a 1 Year Warranty from the date of purchase against manufacturing defects in material and workmanship.
The warranty provides support for manufacturing-related defects under normal intended use. Damage caused by misuse, accidental damage, improper installation, unauthorized modification or physical damage is not covered.
ISO CERTIFIED
FDA APPROVED
CE CERTIFIED
