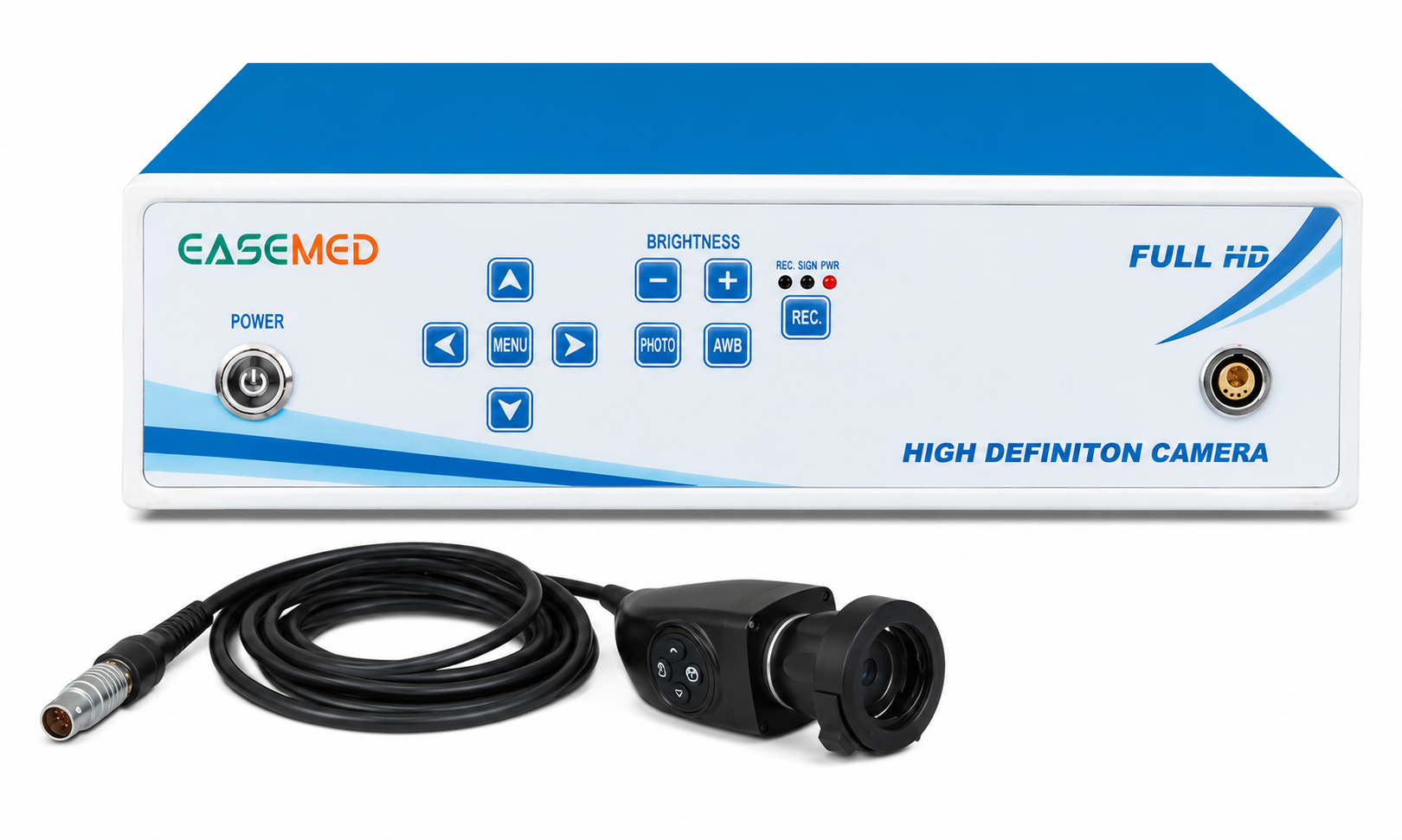

EASEMED Full HD Endoscopy & Laparoscopy Camera System
The EASEMED Full HD Endoscopy & Laparoscopy Camera System is a professional medical imaging solution designed to deliver clear and detailed visualization during laparoscopic, endoscopic, ENT and urological procedures. The system combines a Full HD camera control unit with a high-definition camera head for reliable surgical imaging.
Featuring a 1/2.8" CMOS image sensor and Full HD 1920 × 1080p resolution, the system provides high-quality images for enhanced visualization during minimally invasive procedures. The camera system supports progressive scanning, adjustable brightness, automatic/manual white balance and automatic/manual shutter control.
The integrated controls provide convenient access to image capture, video recording, brightness adjustment and white balance functions. Recording can be performed via USB or an external recording device, while HD-SDI / HDMI output provides flexible connectivity with compatible medical displays and imaging equipment.

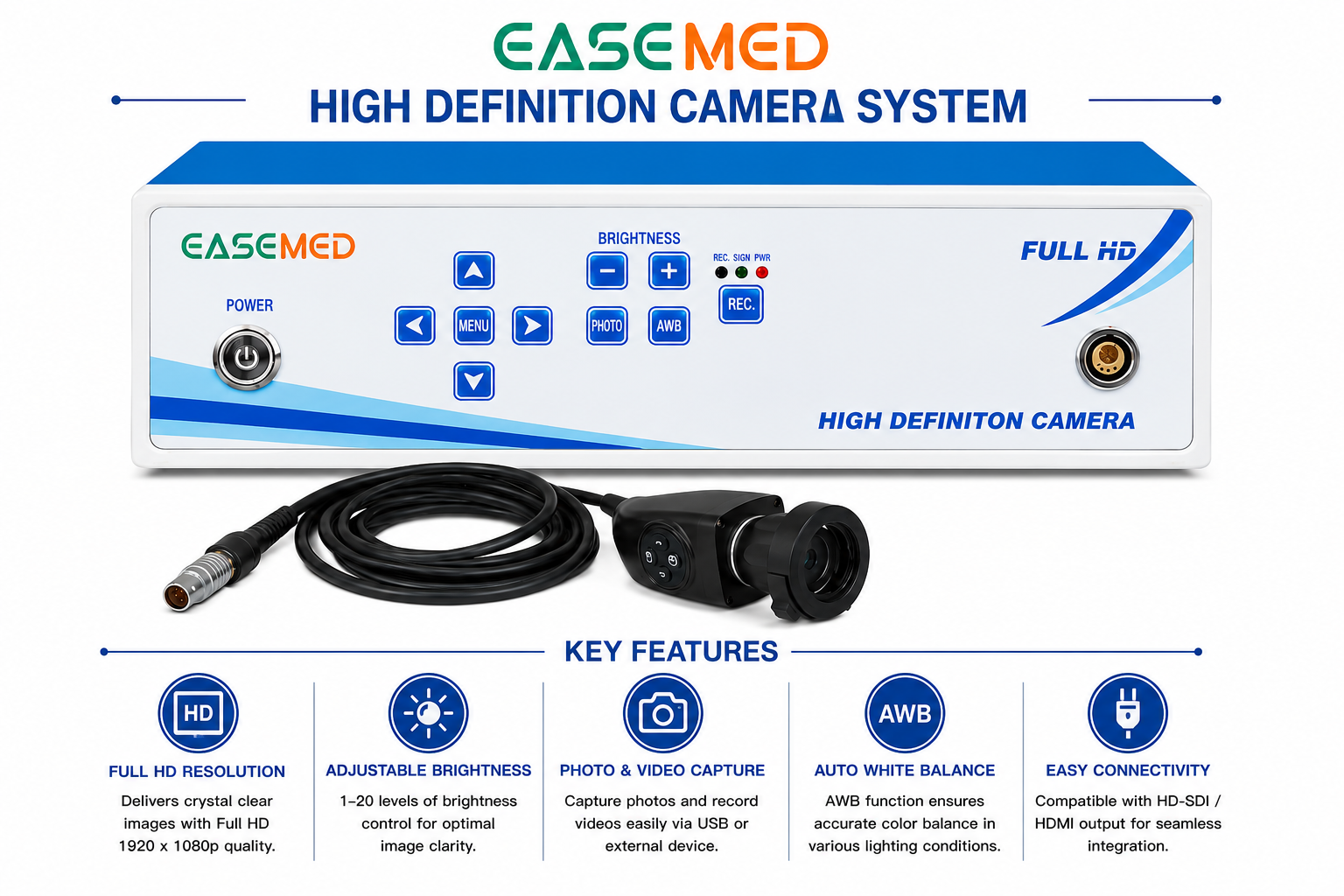

Key Features
- Full HD 1920 × 1080p Resolution – Provides clear and detailed surgical images for improved visualization.
- High-Quality 1/2.8" CMOS Sensor – Designed for reliable image acquisition during endoscopic procedures.
- Photo & Video Capture – Supports image capture and video recording via USB or an external device.
- Adjustable Brightness Control – Provides 1–20 brightness levels for customized image illumination.
- Auto / Manual White Balance – Helps maintain accurate and consistent image color.
- Auto / Manual Shutter Control – Allows flexible exposure adjustment according to imaging conditions.
- Image Freeze Function – Allows convenient freezing of the live image for examination.
- HD-SDI / HDMI Connectivity – Supports flexible connection with compatible medical monitors and imaging systems.
- Progressive Scan Technology – Provides smooth and detailed image display.
- Low-Light Imaging – Minimum illumination of approximately 0.1 Lux for improved visualization in low-light conditions.
- Integrated Camera Head – Complete imaging system supplied with a Full HD camera head and camera cable.

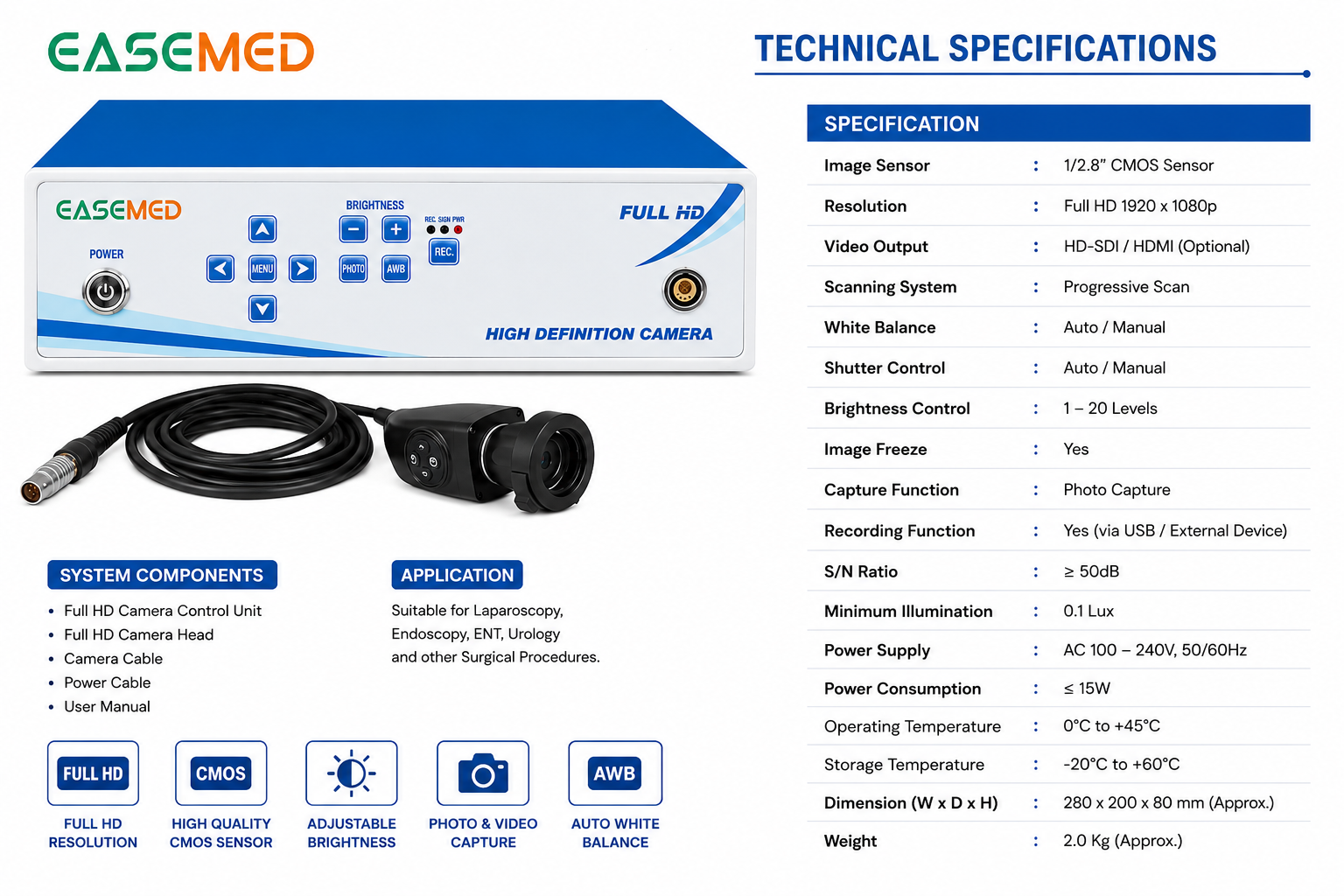

Technical Specifications
| Specification | Details |
|---|---|
| Image Sensor | 1/2.8" CMOS Sensor |
| Resolution | Full HD 1920 × 1080p |
| Video Output | HD-SDI / HDMI (Optional) |
| Scanning System | Progressive Scan |
| White Balance | Auto / Manual |
| Shutter Control | Auto / Manual |
| Brightness Control | 1–20 Levels |
| Image Freeze | Yes |
| Capture Function | Photo Capture |
| Recording Function | Yes, via USB / External Device |
| S/N Ratio | ≥ 50 dB |
| Minimum Illumination | 0.1 Lux |
| Power Supply | AC 100–240V, 50/60Hz |
| Power Consumption | ≤ 15W |
| Operating Temperature | 0°C to +45°C |
| Storage Temperature | -20°C to +60°C |
| Dimensions (W × D × H) | 280 × 200 × 80 mm Approx. |
| Weight | 2.0 kg Approx. |
System Components
- Full HD Camera Control Unit
- Full HD Camera Head
- Camera Cable
- Power Cable
- User Manual
Applications
The EASEMED Full HD Camera System is suitable for:
- Laparoscopy
- Endoscopy
- ENT Procedures
- Urology
- General Minimally Invasive Surgical Procedures
- Medical Endoscopic Imaging

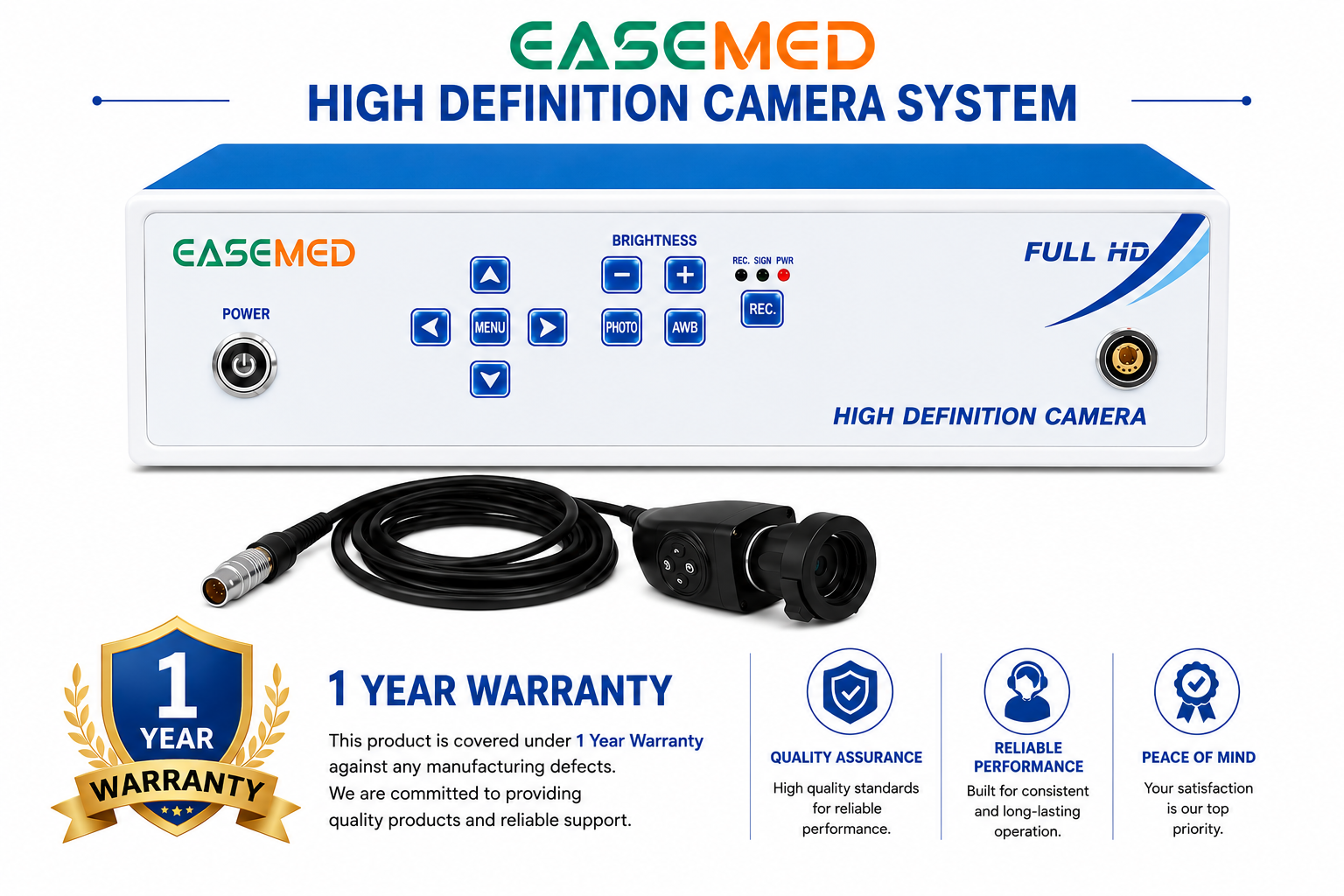

Warranty
1 YEAR WARRANTY
The EASEMED Full HD Endoscopy & Laparoscopy Camera System is covered by a 1 Year Warranty from the date of purchase against manufacturing defects in material or workmanship.
Warranty Period: 1 year from the date of purchase.
Warranty Coverage: Manufacturing defects and workmanship-related faults.
Warranty Exclusions: Physical damage, accidental damage, misuse, improper handling, unauthorized repairs or modifications are not covered under warranty.
ISO CERTIFIED
FDA APPROVED
CE CERTIFIED
