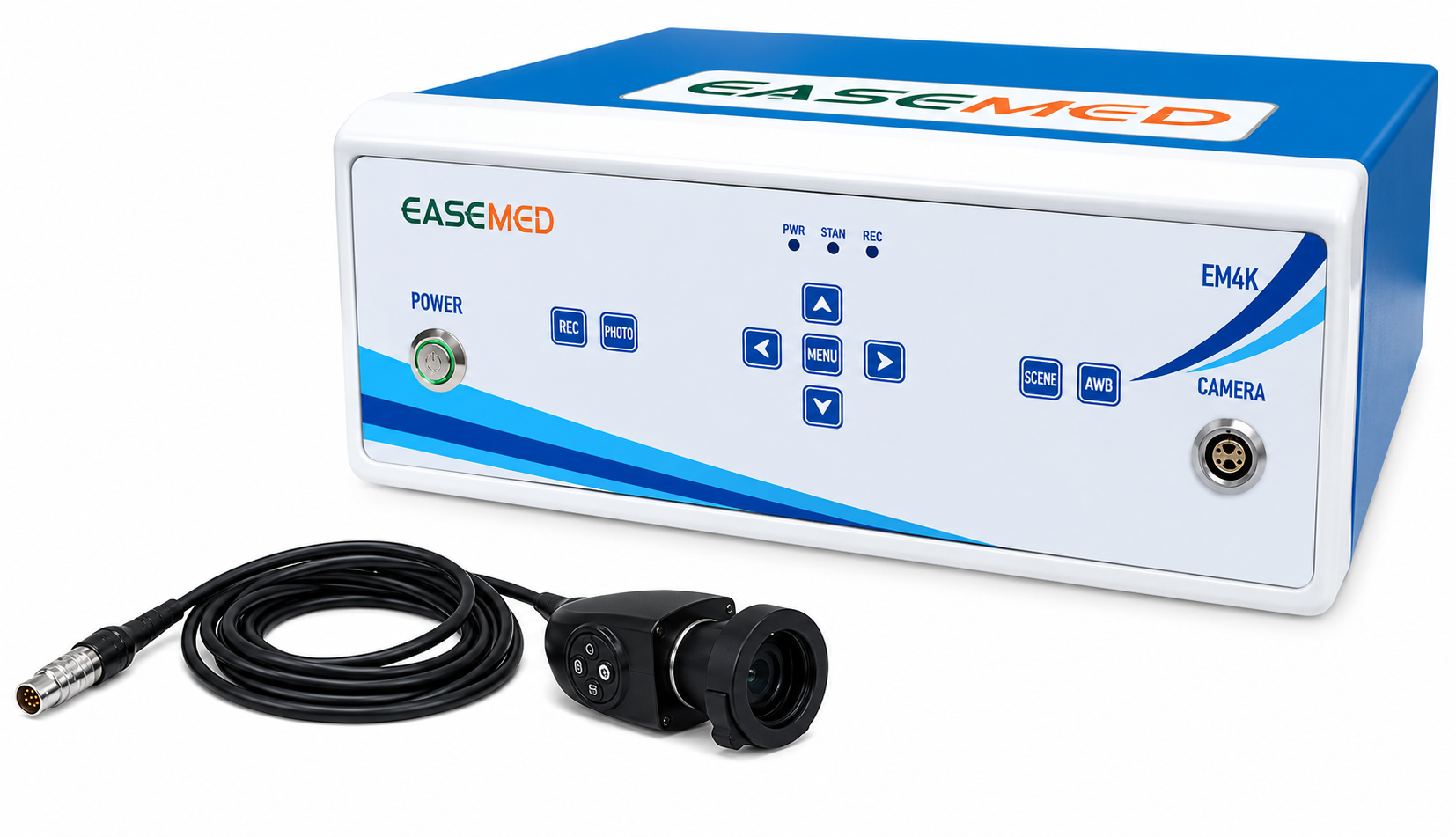

EASEMED EM4K 4K UHD Endoscopy & Laparoscopy Camera System
The EASEMED EM4K 4K UHD Endoscopy & Laparoscopy Camera System is a high-resolution medical imaging solution designed for laparoscopy, endoscopy, ENT, urology and other surgical procedures. The system combines a 4K camera control unit with a high-performance camera head to deliver detailed surgical images for clinical visualization.
With 4K Ultra HD resolution of 3840 × 2160 pixels, a 1/2.8-inch CMOS image sensor, progressive scanning and advanced image controls, the EM4K is designed to provide clear and detailed visualization during endoscopic procedures.
The camera system provides Auto/Manual White Balance, Auto/Manual Shutter Control, adjustable brightness from 1–20 levels and image freeze functionality. Photo capture and recording functions allow images and video to be captured through compatible USB or external devices.

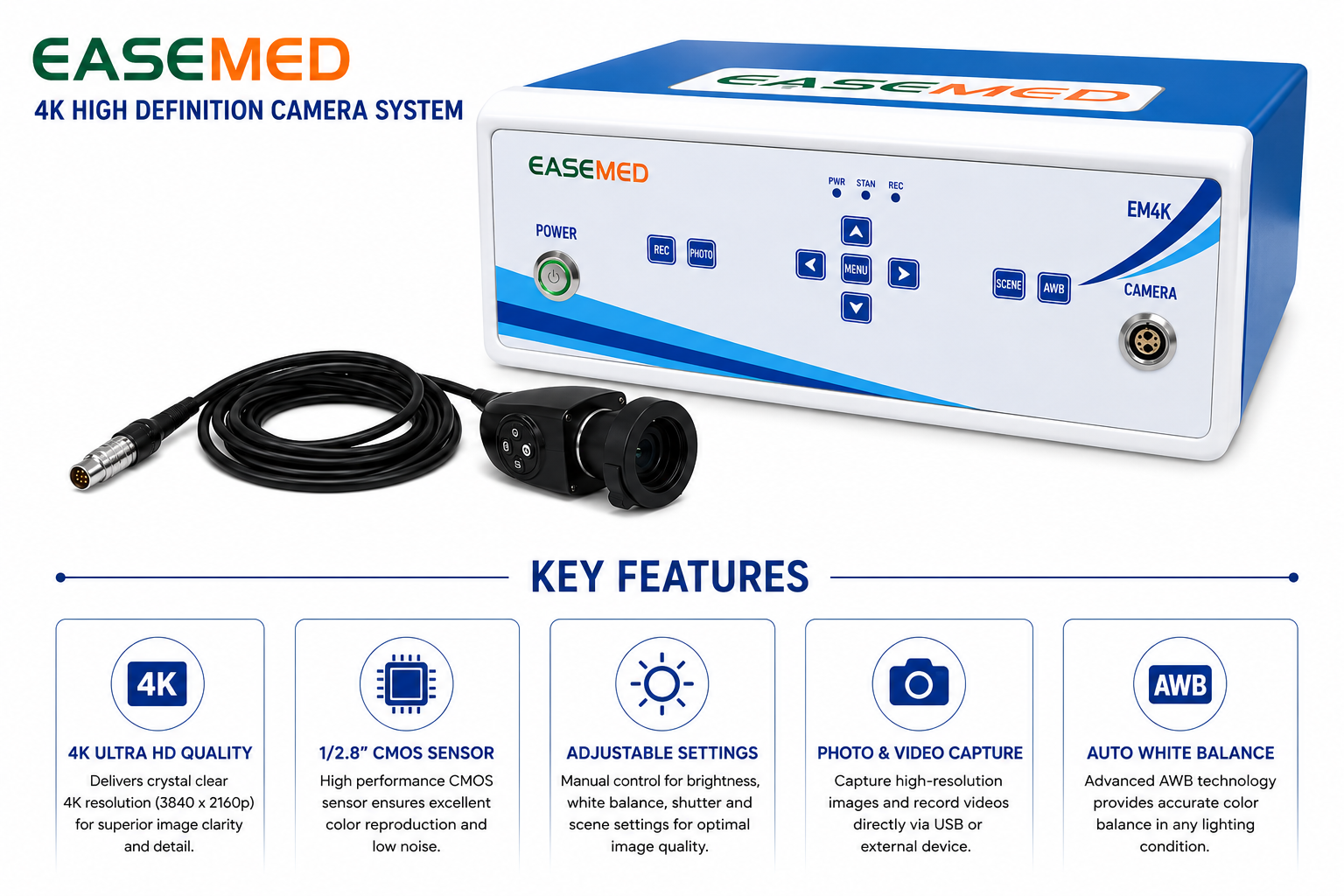

Key Features
- 4K Ultra HD Resolution – Delivers 3840 × 2160 pixel resolution for detailed surgical visualization.
- 1/2.8" CMOS Image Sensor – High-quality CMOS imaging for clear image reproduction.
- 60FPS Medical Imaging – Designed for smooth, detailed visualization during surgical procedures.
- Auto & Manual White Balance – Helps achieve accurate image color under different lighting conditions.
- Adjustable Brightness Control – 20 brightness levels for customized image viewing.
- Auto & Manual Shutter Control – Provides flexible exposure control according to operating requirements.
- Photo & Video Capture – Supports photo capture and video recording through compatible connections.
- Image Freeze Function – Allows convenient freezing of the displayed surgical image.
- Progressive Scan System – Supports smooth and detailed image presentation.
- Low-Light Performance – Minimum illumination of approximately 0.1 Lux.
- Multiple Video Outputs – HDMI / SDI output configuration as specified.
- Wide Surgical Applications – Suitable for laparoscopy, endoscopy, ENT, urology and other surgical procedures.

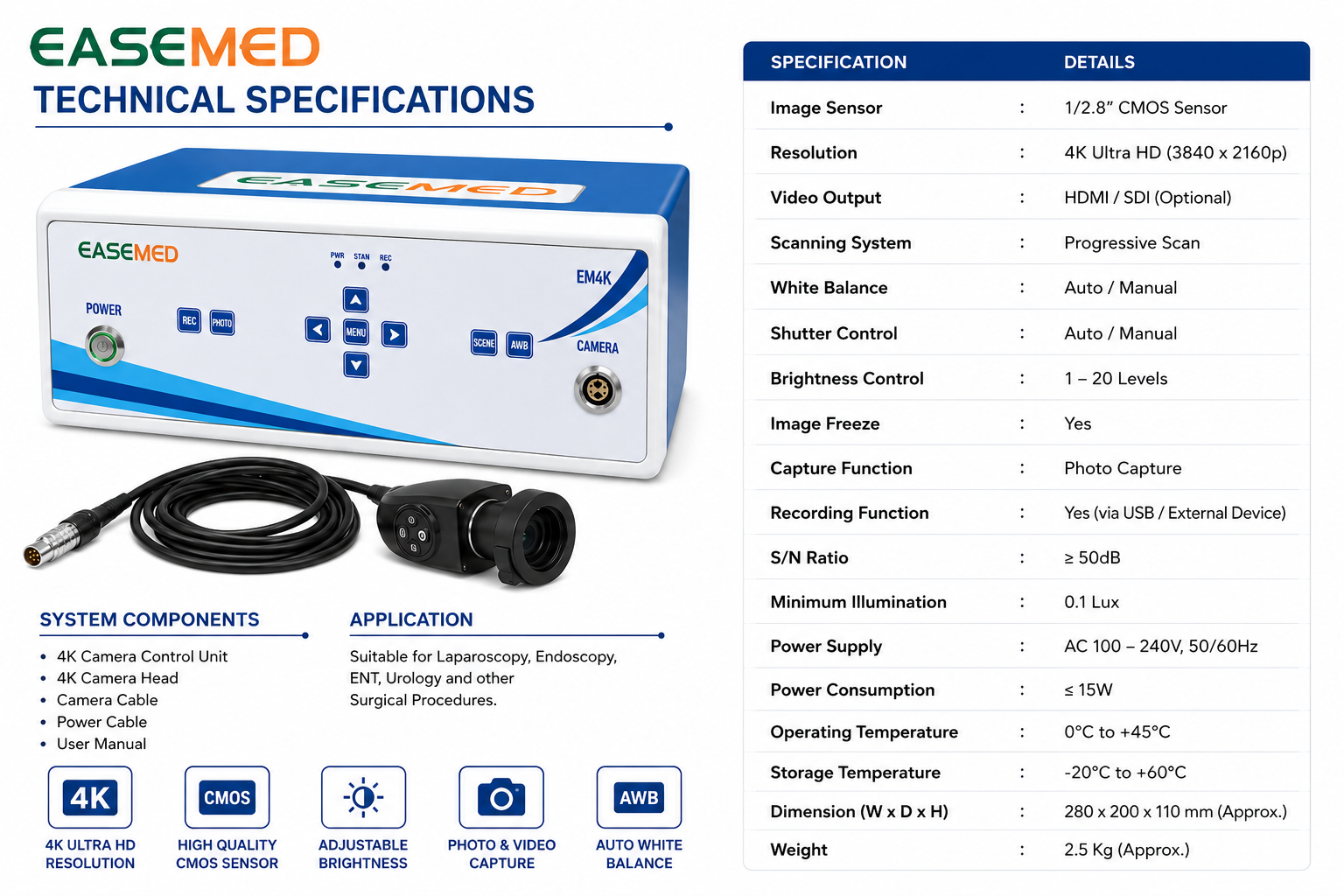

Technical Specifications
| Specification | Details |
|---|---|
| Product Name | EASEMED EM4K 4K Camera System |
| Image Sensor | 1/2.8" CMOS Sensor |
| Resolution | 4K Ultra HD (3840 × 2160p) |
| Video Output | HDMI / SDI (Optional) |
| Scanning System | Progressive Scan |
| White Balance | Auto / Manual |
| Shutter Control | Auto / Manual |
| Brightness Control | 1–20 Levels |
| Image Freeze | Yes |
| Capture Function | Photo Capture |
| Recording Function | Yes, via USB / External Device |
| S/N Ratio | ≥ 50 dB |
| Minimum Illumination | 0.1 Lux |
| Power Supply | AC 100–240V, 50/60Hz |
| Power Consumption | ≤ 15W |
| Operating Temperature | 0°C to +45°C |
| Storage Temperature | -20°C to +60°C |
| Dimensions (W × D × H) | Approx. 280 × 200 × 110 mm |
| Weight | Approx. 2.5 kg |
System Components
The EASEMED EM4K system includes:
- 4K Camera Control Unit
- 4K Camera Head
- Cable
Applications
The EASEMED EM4K 4K camera system is suitable for:
- Laparoscopy
- Endoscopy
- ENT Procedures
- Urology
- General Surgical Procedures
- Endoscopic Imaging Applications

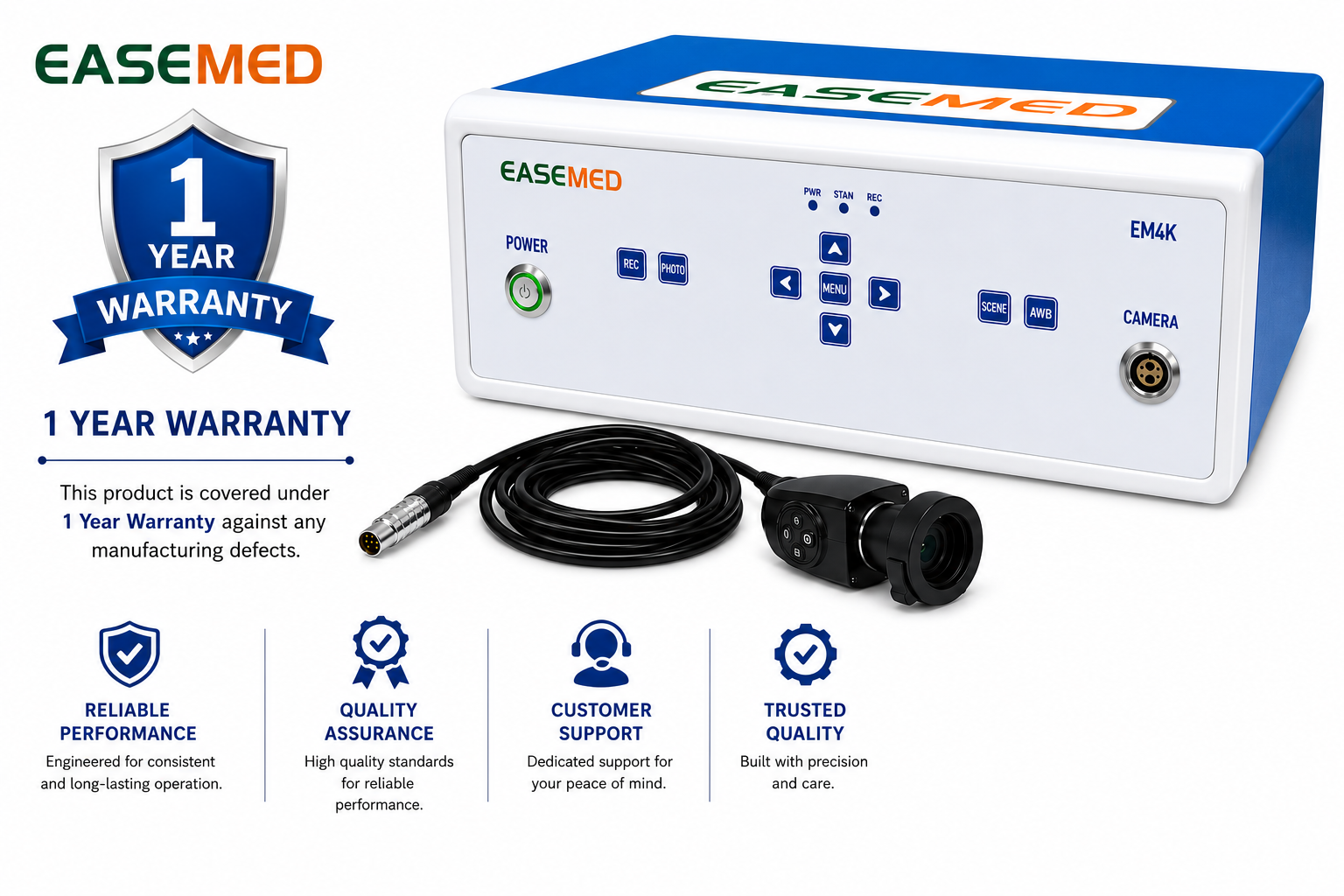

1 Year Warranty
1 YEAR WARRANTY
The EASEMED EM4K 4K UHD Camera System is covered by a 1 Year Warranty against manufacturing defects.
The warranty is intended to provide confidence in product quality and dependable operation.
Warranty: 1 Year against manufacturing defects.
