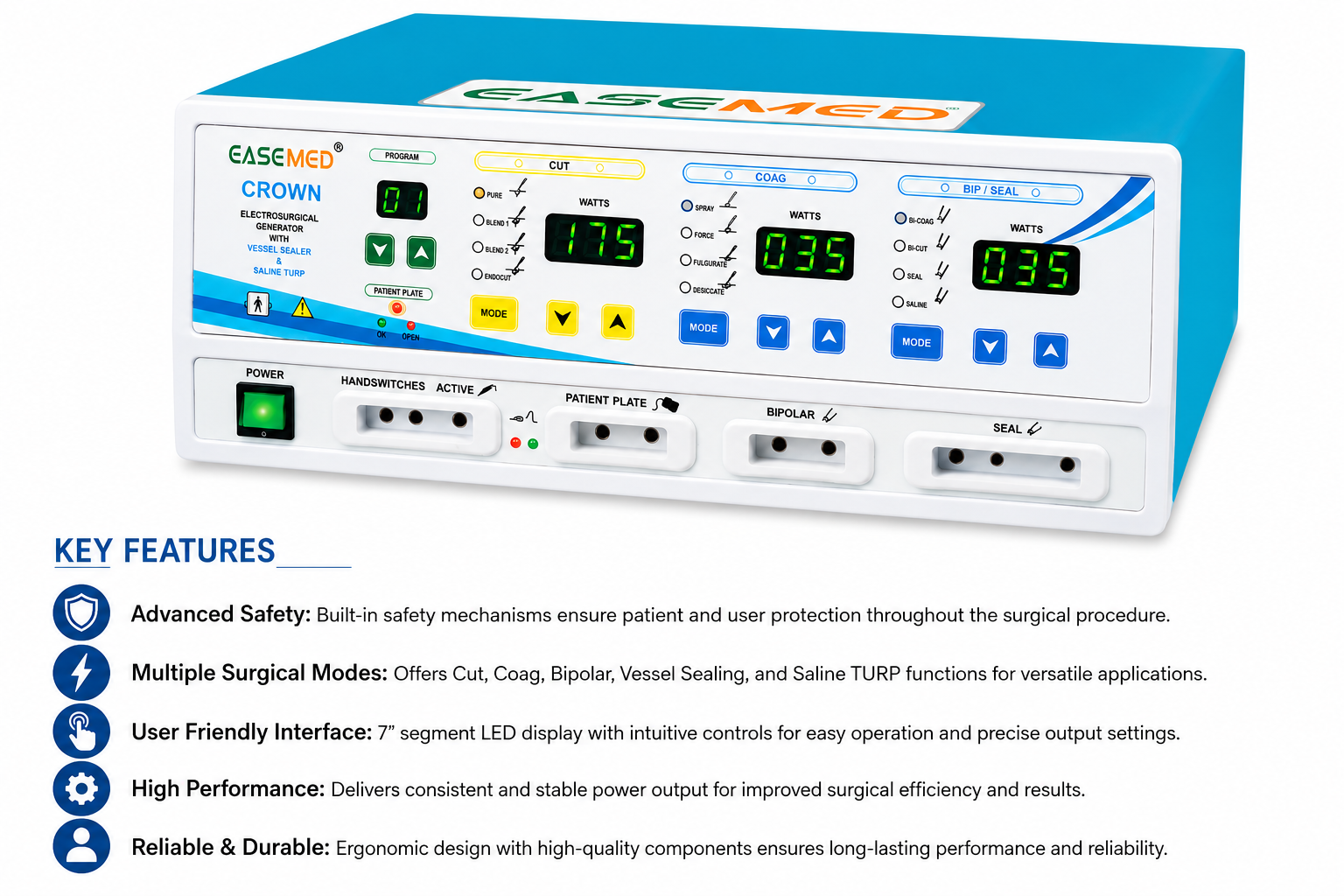

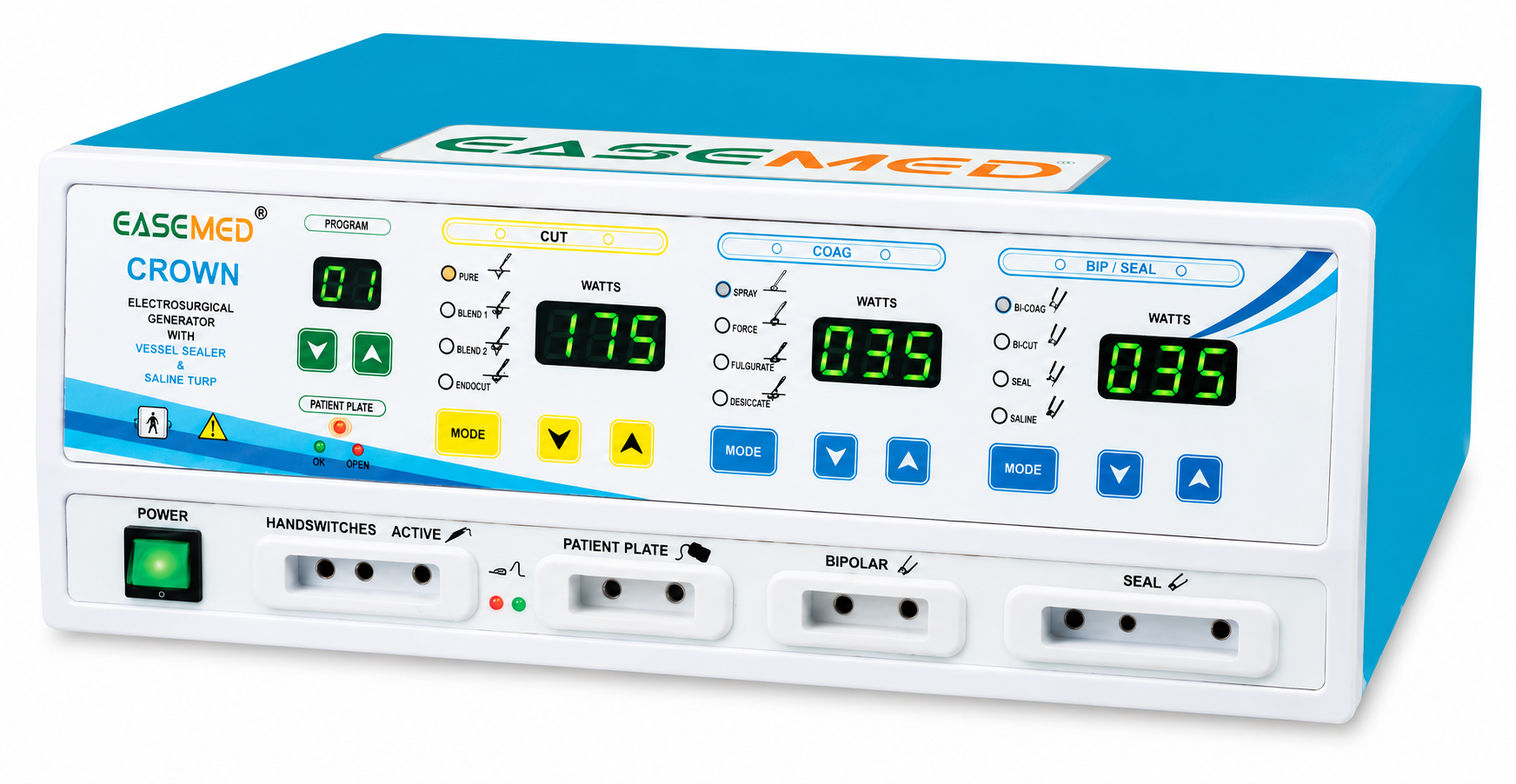

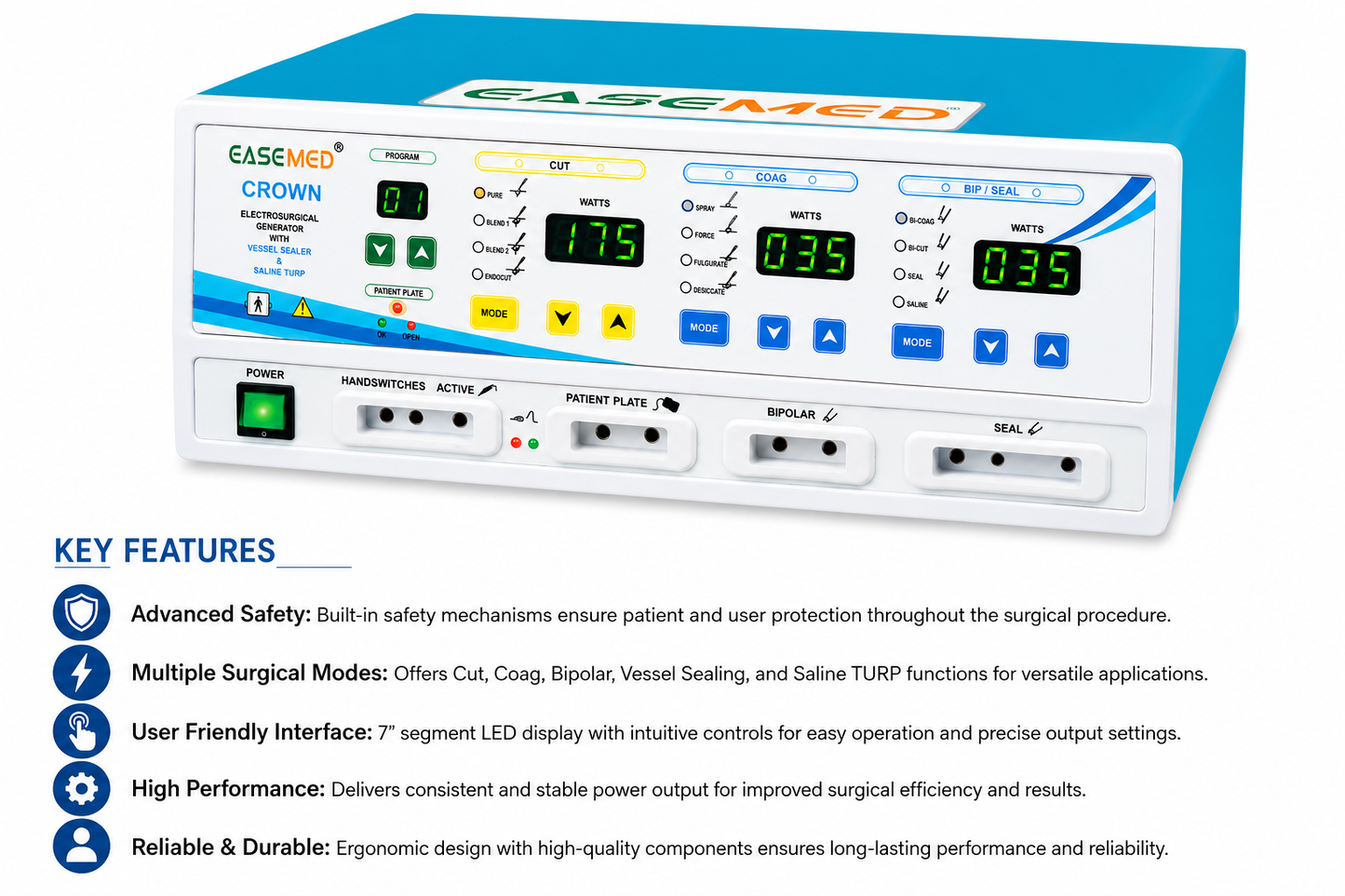

EASEMED CROWN 400W Digital Electrosurgical Generator
The EASEMED CROWN 400W Cautery Machine is an advanced digital electrosurgical generator designed to provide versatile monopolar, bipolar, vessel sealing and saline TURP functions in a single surgical system. With a maximum output of 400W, the unit is suitable for a wide range of surgical applications requiring controlled and reliable electrosurgical energy delivery.
The CROWN features 99 user-programmable modes, allowing customized power settings for different surgical requirements. Its digital 7-segment LED display provides clear visibility of operating parameters, while hand-switch and foot-switch activation options support convenient operation.
The system supports Monopolar Cut, Monopolar Coagulation, Bipolar Coagulation, Vessel Sealing and Saline TURP functions. It also incorporates patient plate monitoring and safety-oriented operating features for dependable performance.
Key Features
- 400W Maximum Output – High-performance electrosurgical generator for demanding surgical applications.
- Monopolar & Bipolar Modes – Supports multiple cutting and coagulation functions.
- Vessel Sealing Function – Dedicated sealing mode with output up to 150W.
- Saline TURP Capability – Supports saline cutting and coagulation applications.
- 99 User-Programmable Programs – Allows customized operating settings.
- Digital 7-Segment LED Display – Clear display for convenient monitoring and control.
- Patient Plate Monitoring – Helps monitor patient plate connection during operation.
- Hand Switch & Foot Switch Activation – Flexible activation options for surgical procedures.
- Multiple Operating Modes – Pure Cut, Blend, Endocut, Spray, Force, Fulgurate, Desiccate, Bipolar and Seal modes.
- Advanced Microcontroller-Based Operation – Designed for precise and consistent energy delivery.

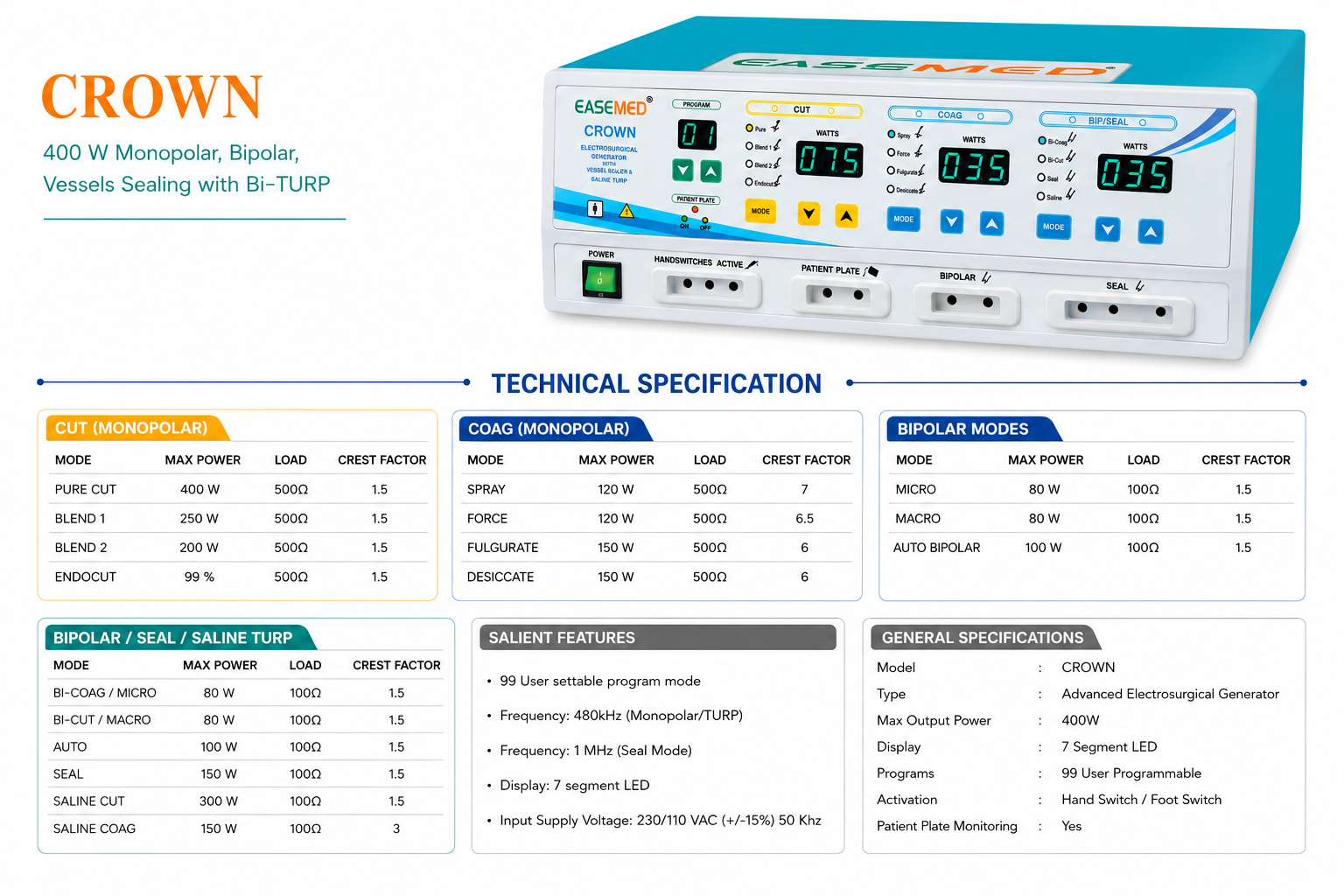

Technical Specifications
| Specification | Details |
|---|---|
| Model | CROWN |
| Type | Advanced Electrosurgical Generator |
| Maximum Output Power | 400W |
| Programs | 99 User Programmable |
| Display | 7-Segment LED |
| Activation | Hand Switch / Foot Switch |
| Patient Plate Monitoring | Yes |
| Monopolar Cut | Pure Cut – 400W; Blend 1 – 250W; Blend 2 – 200W; Endocut |
| Monopolar Coagulation | Spray – 120W; Force – 120W; Fulgurate – 150W; Desiccate – 150W |
| Bipolar Modes | Micro – 80W; Macro – 80W; Auto Bipolar – 100W |
| Vessel Sealing | Seal – 150W |
| Saline TURP | Saline Cut – 300W; Saline Coag – 150W |
| Monopolar/TURP Frequency | 480 kHz |
| Seal Mode Frequency | 1 MHz |
| Input Supply Voltage | 230/110 VAC ±15%, 50 kHz* |
*As specified in the provided product specification. Please verify the final electrical specification against the product's technical documentation before publishing.
Applications
The EASEMED CROWN 400W Electrosurgical Generator is suitable for professional surgical environments and applications including:
- General Surgery
- Laparoscopic Surgery
- Gynecology
- Urology
- Saline TURP Procedures
- Electrosurgical Cutting & Coagulation
- Bipolar Surgery
- Vessel Sealing Procedures
Standard Accessories
- Chuck Handle with Autoclavable Electrodes
- Bipolar Forceps with Autoclavable Cable
- Monopolar / Bipolar Foot Switch
- Disposable Hand Switch Pencil
- Patient Plate with Cable
Warranty
1 YEAR WARRANTY
The EASEMED CROWN 400W Cautery Machine comes with a 1 Year Warranty against manufacturing defects from the date of purchase.
Warranty Coverage: Manufacturing defects and faulty workmanship.
Not Covered: Damage caused by misuse, mishandling, accidental damage, unauthorized repairs or improper operation.
Warranty Period: 1 Year
