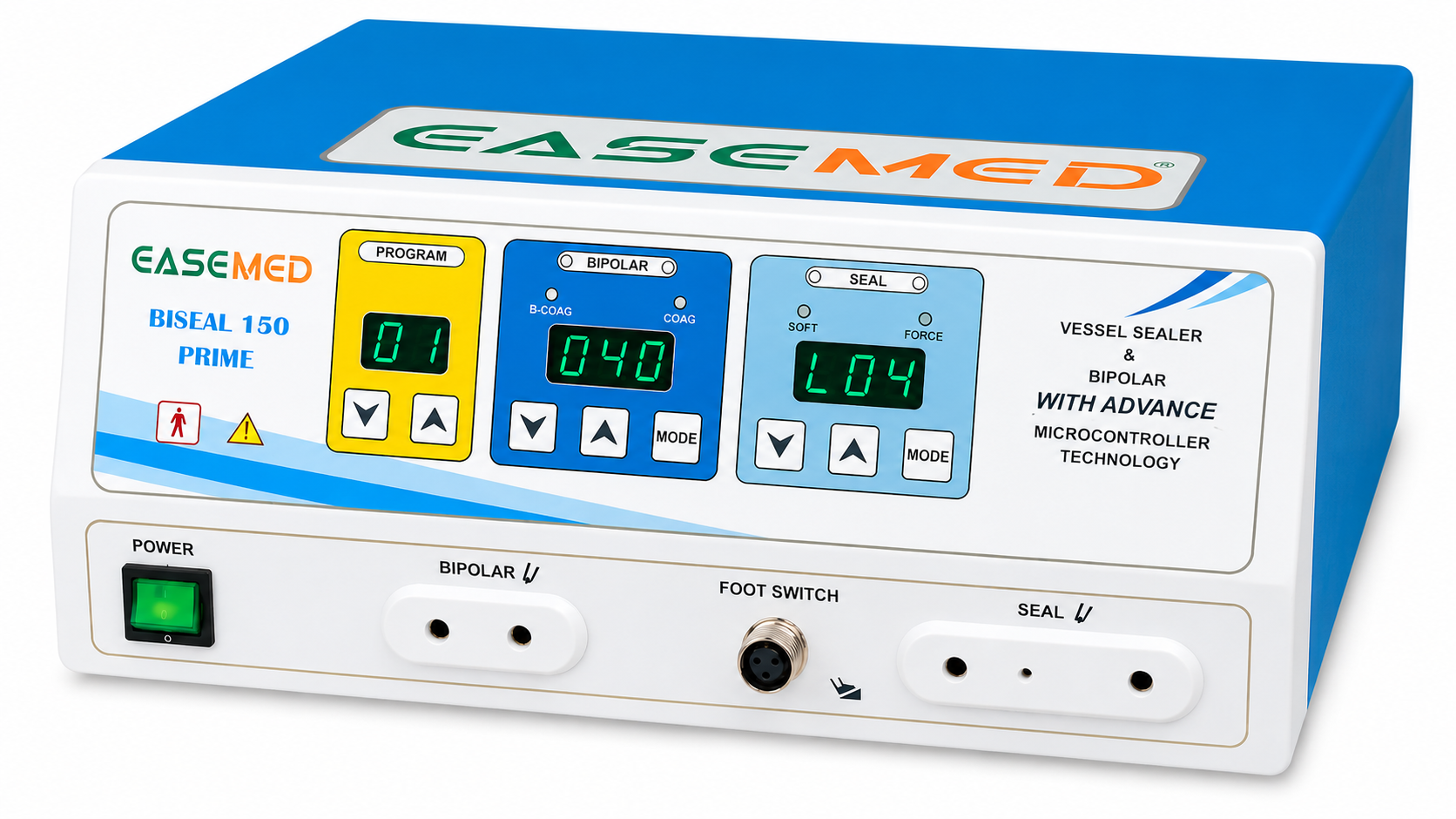

EASEMED BISEAL 150 Vessel Sealer & Bipolar Electrosurgical Generator
Product Description
EASEMED BISEAL 150 PRIME is a microcontroller-based vessel sealer and bipolar electrosurgical generator designed for controlled electrosurgical energy delivery and vessel sealing applications. It combines monopolar cut, monopolar coagulation, bipolar coagulation and vessel sealing functions in a compact digital-control unit.
The system features a 3-digit 7-segment LED display, soft-touch digital controls and dedicated settings for bipolar coagulation and vessel sealing. With a maximum 150W monopolar cut output, 40W bipolar coagulation output, and L04 vessel-sealing level, the BISEAL 150 PRIME provides versatile operating modes for a range of surgical applications.
Its applications include general surgery, laparoscopy, gynecology, urology, ENT and plastic surgery.

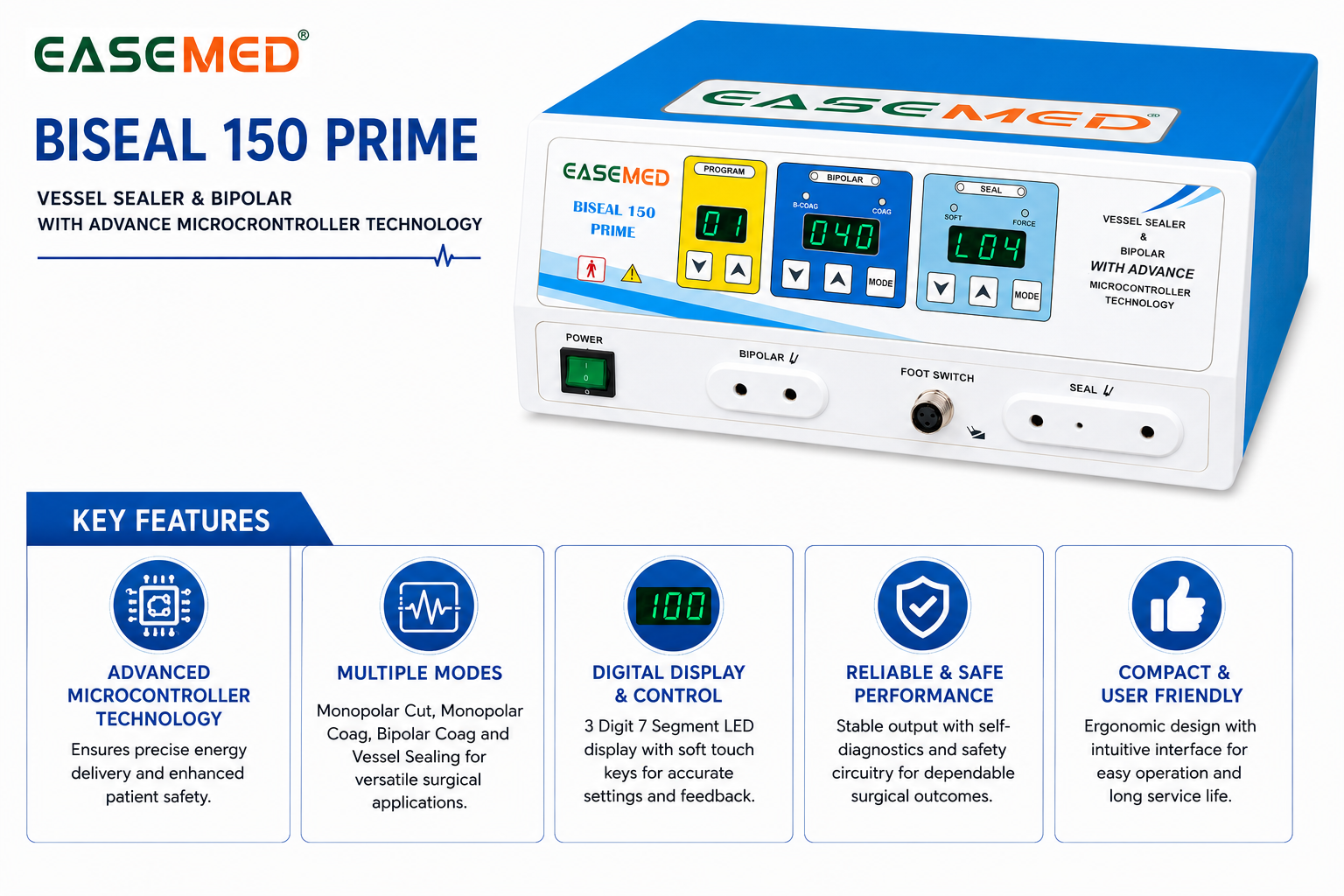

Key Features
- Advanced Microcontroller Technology – Microcontroller-based control for precise and consistent energy delivery.
- Vessel Sealing & Bipolar Functionality – Combines vessel sealing with bipolar electrosurgical operation.
- Multiple Operating Modes – Monopolar Cut, Monopolar Coag, Bipolar Coag and Vessel Sealing.
- Digital Display & Soft-Touch Controls – 3-digit 7-segment LED display for program, power and mode settings.
- 150W Maximum Monopolar Cut Output – Provides high-power output for applicable electrosurgical procedures.
- 40W Bipolar Coagulation Output – Dedicated bipolar coagulation capability.
- L04 Vessel Sealing Level – Adjustable vessel-sealing control with Soft and Force settings.
- 400 kHz Operating Frequency – High-frequency electrosurgical output.
- Safety-Oriented Design – Class I, Type BF safety classification as specified.
- Compact Construction – Approx. 310 × 270 × 130 mm and 4.5 kg.

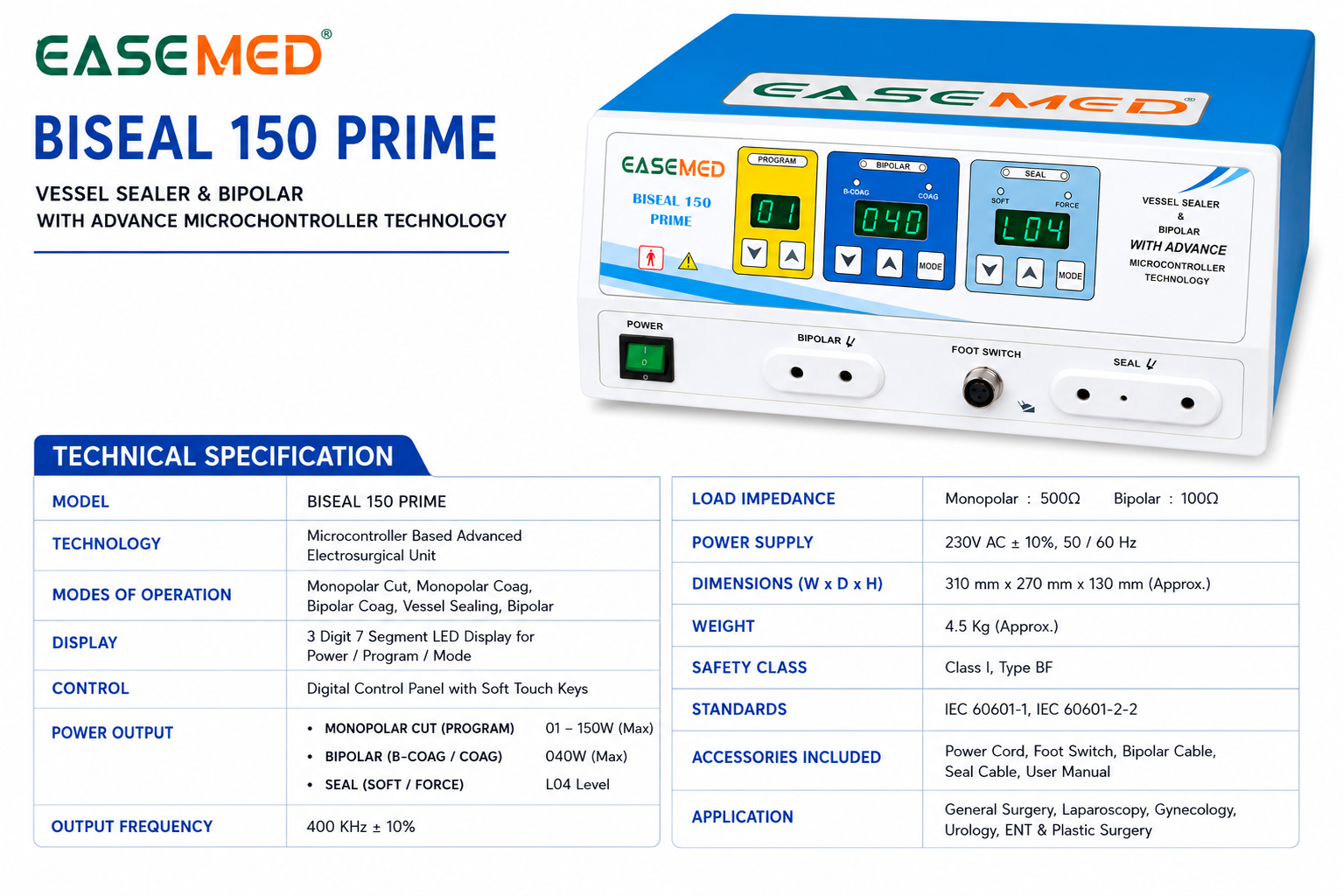

Technical Specifications
| Specification | Details |
|---|---|
| Model | BISEAL 150 PRIME |
| Technology | Microcontroller-Based Advanced Electrosurgical Unit |
| Modes of Operation | Monopolar Cut, Monopolar Coag, Bipolar Coag, Vessel Sealing, Bipolar |
| Display | 3-Digit 7-Segment LED Display |
| Control | Digital Control Panel with Soft-Touch Keys |
| Monopolar Cut | 01–150W Max |
| Bipolar (B-Coag / Coag) | 040W Max |
| Seal (Soft / Force) | L04 Level |
| Output Frequency | 400 kHz ±10% |
| Load Impedance | Monopolar: 500Ω / Bipolar: 100Ω |
| Power Supply | 230V AC ±10%, 50/60 Hz |
| Dimensions (W × D × H) | Approx. 310 × 270 × 130 mm |
| Weight | Approx. 4.5 kg |
| Safety Class | Class I, Type BF |
| Standards | IEC 60601-1, IEC 60601-2-2 |
Applications
- General Surgery
- Laparoscopy
- Gynecology
- Urology
- ENT
- Plastic Surgery
Accessories Included
- Chuck Handle with Autoclavable Electrodes
- Bipolar Forceps with Autoclavable Cable
- Monopolar / Bipolar Foot Switch
- Disposable Hand Switch Pencil
- Patient Plate with Cable
Warranty
1 Year Warranty Against Manufacturing Defects
The EASEMED BISEAL 150 PRIME is covered by a 1 Year Warranty against manufacturing defects from the date of purchase/invoice.
The warranty covers manufacturing defects and faulty workmanship. Damage caused by misuse, mishandling, accidental damage or unauthorized repairs is not covered.
Warranty: 1 Year
