INSTRUMED HEALTHCARE
EASEMED Advance Endoflator CO₂ Insufflator with Inbuilt Gas Warmer | Microcontroller Controlled Endoscopic Insufflation System | 3 Flow Modes | Medical CO₂ Endoflator
EASEMED Advance Endoflator CO₂ Insufflator with Inbuilt Gas Warmer | Microcontroller Controlled Endoscopic Insufflation System | 3 Flow Modes | Medical CO₂ Endoflator
Couldn't load pickup availability

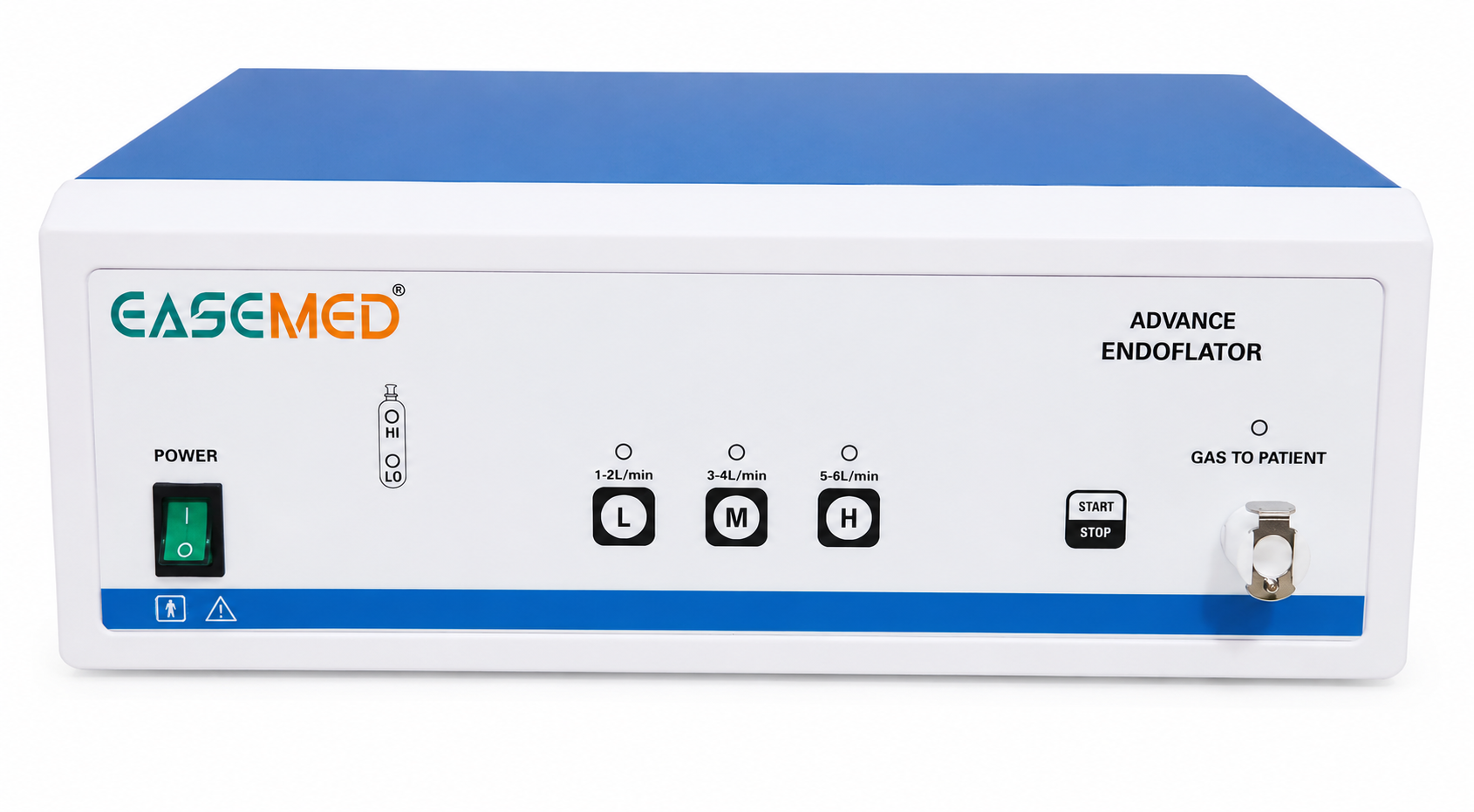

EASEMED Advance Endoflator CO₂ Insufflator
The EASEMED Advance Endoflator CO₂ Insufflator is a professional medical CO₂ insufflation system designed to provide controlled and reliable gas delivery for laparoscopic and endoscopic procedures. Its microcontroller-controlled operation and selectable flow modes allow healthcare professionals to manage insufflation according to procedural requirements.
The unit offers three selectable flow rate modes — Low, Medium and High — with flow ranges of 1–2 L/min, 3–4 L/min and 5–6 L/min. It is designed for use with CO₂ (Carbon Dioxide) and features digital controls for straightforward operation.
The Advance Endoflator incorporates safety-oriented functions including over-pressure protection, automatic pressure release and audio-visual alarm indication, helping support controlled insufflation during procedures.

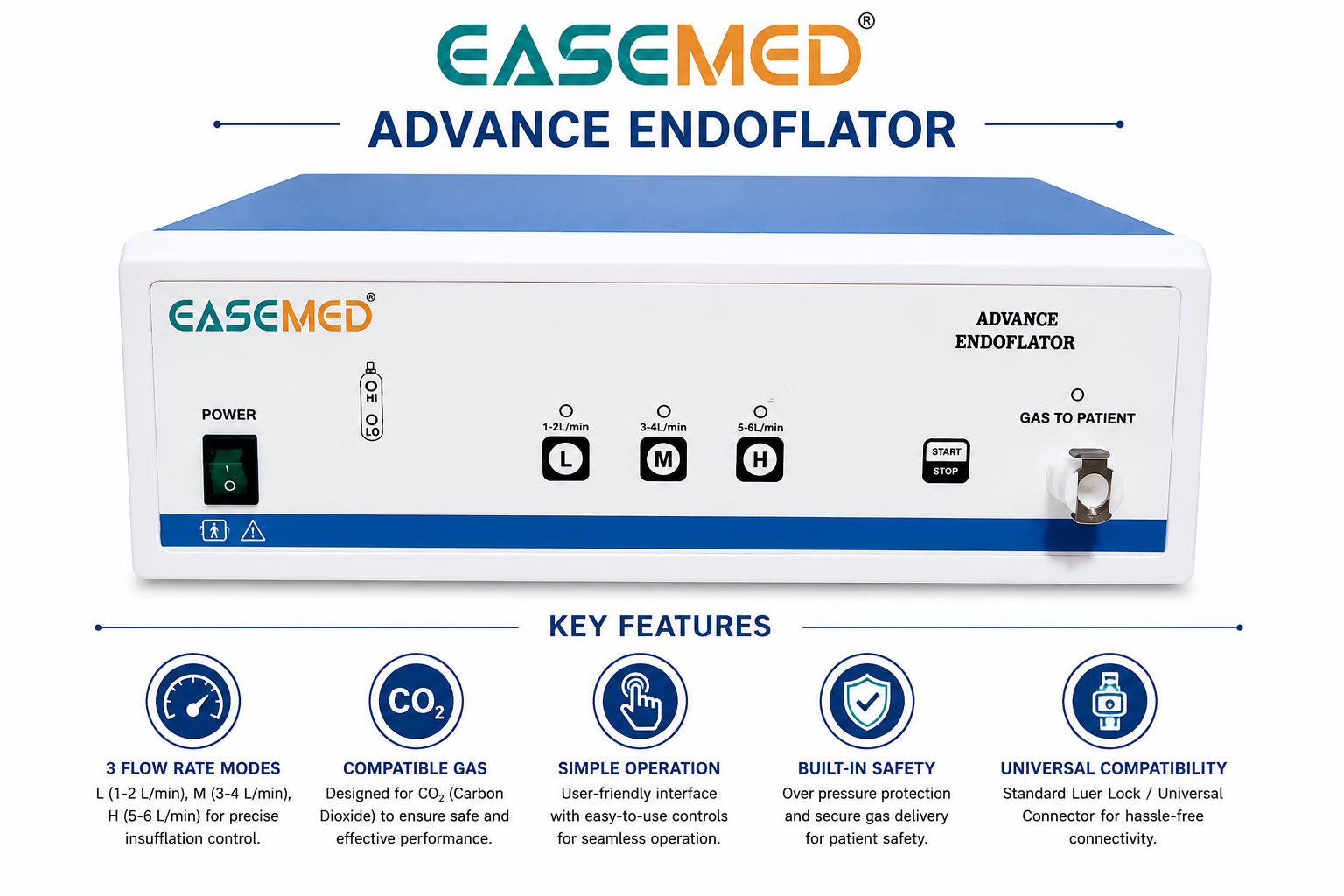

Key Features
- 3 Selectable Flow Modes: Low 1–2 L/min, Medium 3–4 L/min and High 5–6 L/min.
- CO₂ Insufflation: Designed for controlled delivery of medical carbon dioxide.
- Microcontroller-Controlled Operation: Supports consistent and user-friendly system operation.
- Digital Control: Simple controls for selecting the required flow mode.
- Maximum Insufflation Pressure: Up to 25 mmHg.
- Built-In Safety Functions: Includes over-pressure protection and automatic pressure release.
- Audio-Visual Alarm: Provides warning indication during abnormal operating conditions.
- Universal Gas Connection: Standard Luer Lock / universal connector configuration.
- LED Flow Indication: Visual indication of the selected flow rate mode.
- Compact Medical Design: Suitable for integration into laparoscopic and endoscopic procedure environments.

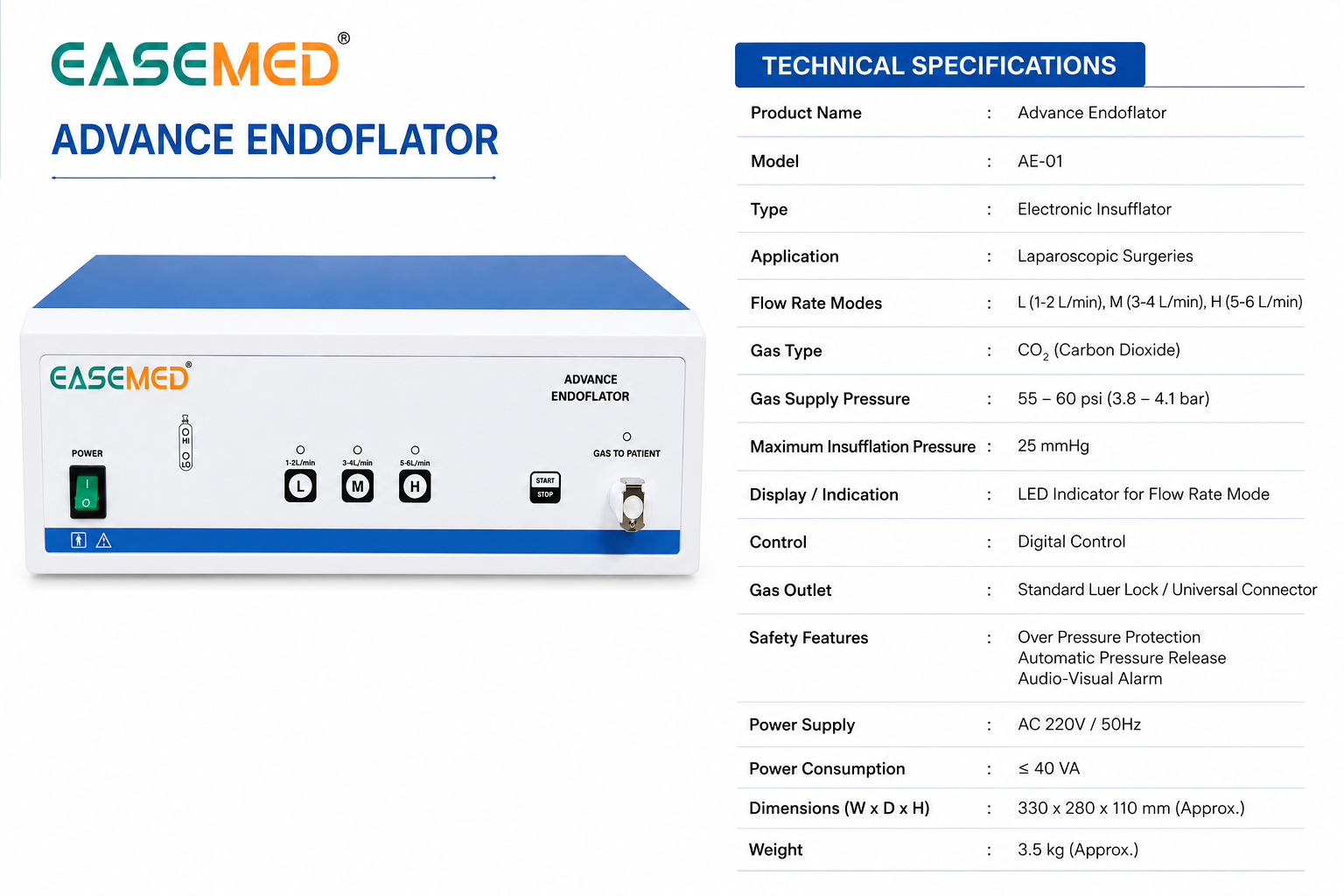

Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Advance Endoflator |
| Model | AE-01 |
| Type | Electronic Insufflator |
| Application | Laparoscopic Surgeries |
| Flow Rate Modes | L: 1–2 L/min, M: 3–4 L/min, H: 5–6 L/min |
| Gas Type | CO₂ (Carbon Dioxide) |
| Gas Supply Pressure | 55–60 psi (3.8–4.1 bar) |
| Maximum Insufflation Pressure | 25 mmHg |
| Display / Indication | LED Indicator for Flow Rate Mode |
| Control | Digital Control |
| Gas Outlet | Standard Luer Lock / Universal Connector |
| Safety Features | Over Pressure Protection, Automatic Pressure Release, Audio-Visual Alarm |
| Power Supply | AC 220V / 50Hz |
| Power Consumption | ≤ 40 VA |
| Dimensions (W × D × H) | Approx. 330 × 280 × 110 mm |
| Weight | Approx. 3.5 kg |

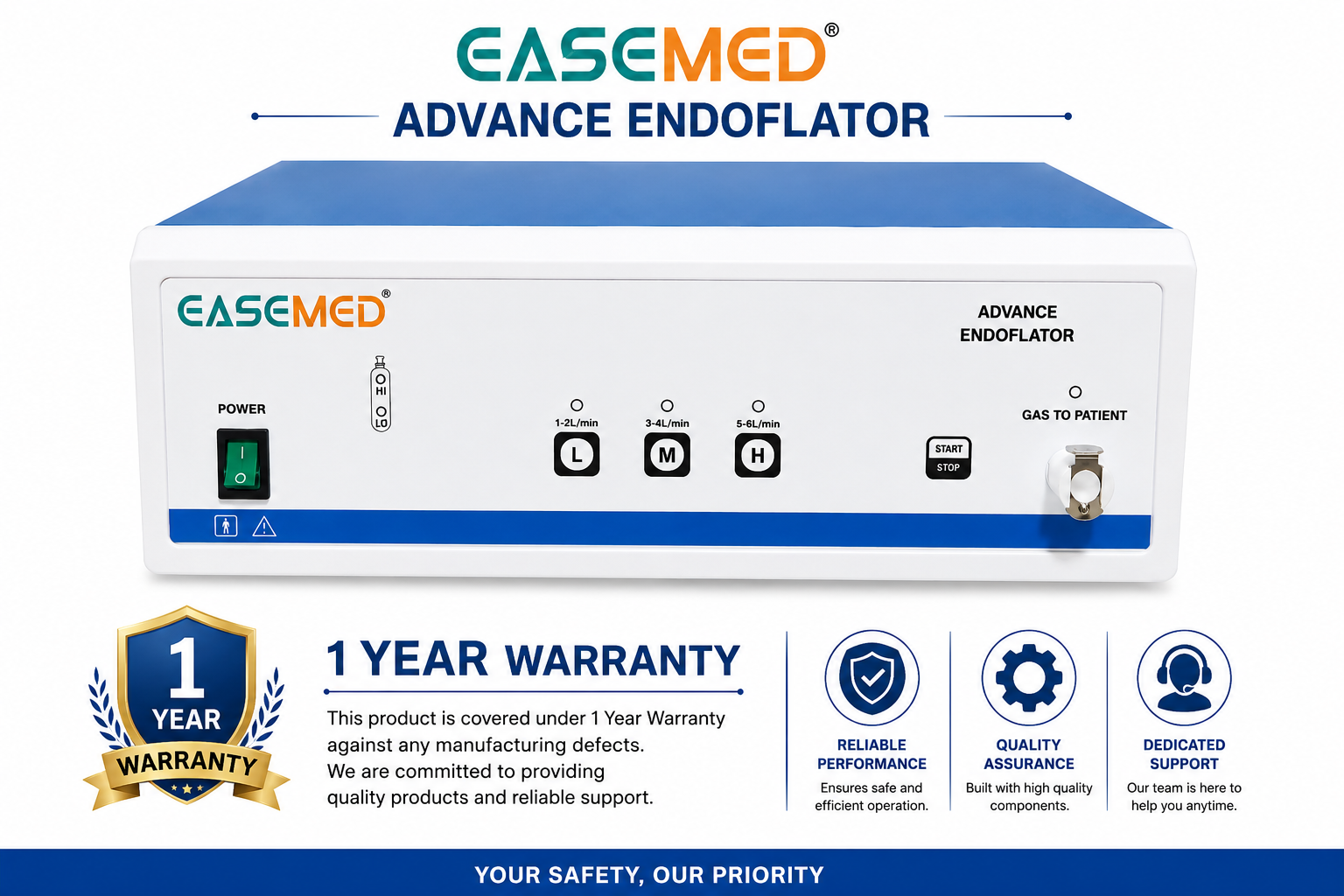

1 Year Warranty
EASEMED Advance Endoflator comes with a 1 Year Warranty against manufacturing defects. We are committed to providing reliable product performance and customer support throughout the warranty period.
Warranty: 1 Year against manufacturing defects.
Ideal For
The EASEMED Advance Endoflator is designed for professional medical environments requiring controlled CO₂ insufflation, including laparoscopic and endoscopic surgical applications.
ISO CERTIFIED
FDA APPROVED
CE CERTIFIED
